Product Information

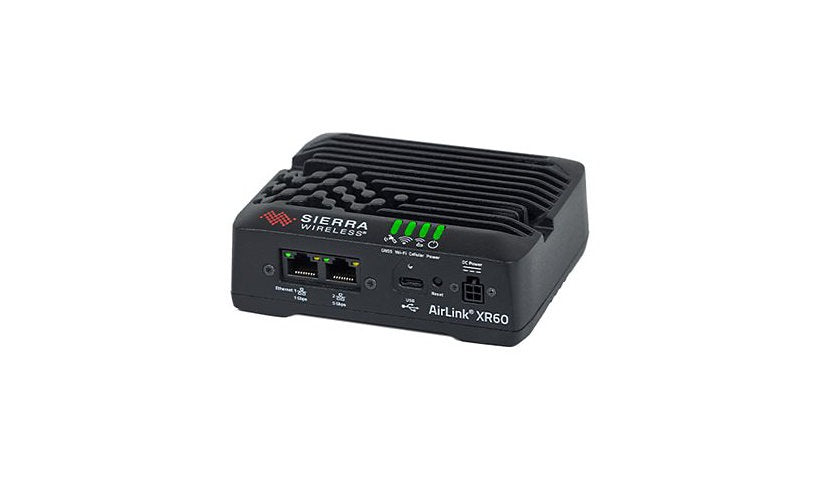

The Sierra Wireless AirLink XR60 is an in-vehicle 5G router with dual band Wi-Fi 6, a GNSS receiver and an aluminum housing. It runs AirLink OS on an ARM A53 processor with 4 GB of RAM, offering up to 2.8 Gbps downlink, 800 Mbps firewall throughput and FIPS 140-2 Level 1 encryption. Quick specs list 5 years of AirLink Complete and TAA compliance.
Key Features
- 5G, LTE and HSPA+, up to 2.8 Gbps down, 900 Mbps up
- Wi-Fi 6 dual band, 2 x Nano SIM, GNSS
- 800 Mbps firewall, 175 Mbps IPsec VPN
- FIPS 140-2 Level 1, FirstNet ready
- ARM A53, 4 GB RAM, 512 MB flash, AirLink OS
- 5 years AirLink Complete and TAA per quick specs
Product Information
Product Type #2: Wireless cellular modem
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless AirLink
Model: XR60
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Country: Global
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: IPSec, IPv4, IPv6
Bridge & Router: Downlink bandwidth: 2800 Mbps, Firewall throughput (TCP): 800 Mbps, Uplink bandwidth: 900 Mbps, VPN throughput (IPSec): 175 Mbps
Authentication Method: RADIUS
Encryption: 128-bit AES, 192-bit AES, 256-bit AES, 256-bit SHA, 384-bit SHA, 512-bit SHA, FIPS 140-2 Level 1, IKEv1, IKEv2, WPA2-Enterprise, WPA2-Personal, WPA2-Transitional, WPA3-Personal, WPA3-Transitional
Modem Transmission Data Rate: 2800 MBps
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: 5G, HSPA+, LTE
Operating System Edition: AirLink OS
Key Features: Firewall, USB port, VPN support
Features: 2x2 MIMO technology, 4x4 MIMO technology, Aluminum housing, Dead Peer Detection (DPD), DHCP server, FirstNet ready, IP passthrough, LAN segmentation, NAT support, Policy based routing, Port forwarding, QoS, Reconfigurable MTU size, Static routing
Software Type: AirLink Management Service (ALMS)
Connectivity
Expansion Slots: 2 (total) / 2 (free) x Nano-SIM
Memory and Processor
Processor Brand: ARM
Processor Type: A53
Processors Installed: 1
RAM Installed: 4 GB
Flash Memory Installed: 512 megabyte
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 95% RH
Physical Characteristics
Form Factor (Hubs & Switches): In-vehicle
Built-in Devices: GNSS receiver
Dimensions and Weight
Height: 3.9 inch
Width: 4.6 inch
Depth: 1.5 inch
Weight: 18.41 ounce
Included Items
Included Accessories: Power cable
Warranty
Service Activation: No
