Product Information

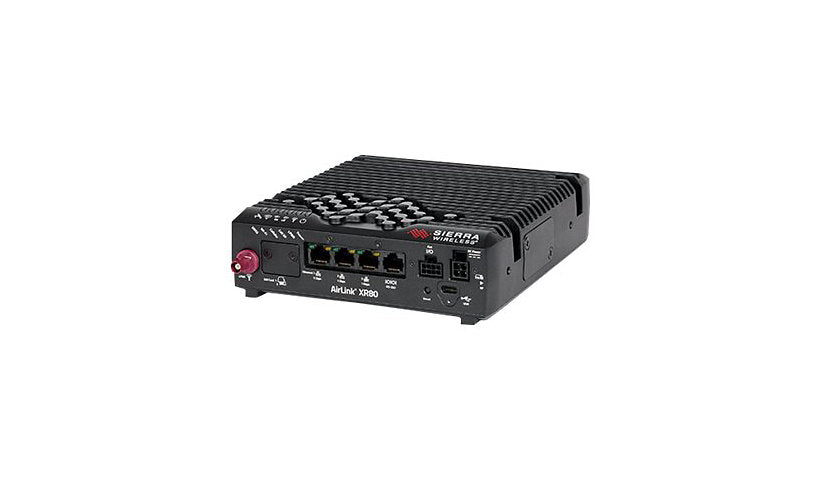

The Sierra Wireless AirLink XR80 is a cellular router for fixed and mobile use with 4x4 MIMO Wi-Fi 6, a 5GbE port, two GbE ports, RS-232 and USB-C. Its description notes available dual 5G radios, while the cellular spec lists HSPA+ and LTE, so please confirm the radio module. It includes 1 year of AirLink Complete.
Key Features
- Wi-Fi 6 with 4x4 MIMO, up to 128 clients
- 1 x 5GbE, 2 x GbE, RS-232, USB-C 3.1
- Dual Mini-SIM slots, FAKRA antenna connector
- IPSec VPN (10 tunnels), AES-256, IKEv2
- LPWA antenna included
- 1 year AirLink Complete listed
Product Information
Product Type #2: Wireless cellular modem
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless AirLink
Model: XR80
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: IPSec
Routing Protocol: Policy-based routing (PBR), Static IPv4 routing, Static IPv6 routing
Authentication Method: Radio Service Set ID (SSID), RADIUS
Encryption: 128-bit AES, 192-bit AES, 256-bit AES, 256-bit SHA, 384-bit SHA, 512-bit SHA, IKEv1, IKEv2, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Modem Transmission Data Rate: 4.14 GBps
Capacity: Concurrent VPN tunnels: 10, SSIDs total: 4, Wireless clients: 128
Wireless LAN: 802.11a/b/g/n/ac/ax
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: HSPA+, LTE
IoT Communications Technology: 5G, LPWA
Internet of Things (IoT) Compatible: Yes
Key Features: Firewall, USB port, VPN support
Features: 4x4 MIMO technology, Authentication, Authorization and Accounting (AAA), Dead Peer Detection (DPD), DHCP server, DMZ support, LAN segmentation, NAT support, Port forwarding, Quality of Service (QoS), Reconfigurable MTU size, Secure firmware update, Tunneling, Web interface
Connectivity
Interface Provided: Antenna: FAKRA connector, AUX: 1 x GPIO, LAN: 1 x 5GBase-T - RJ-45, LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45, Serial: RS-232 - RJ-45, USB 3.1 Gen 2: 1 x 24 pin USB-C
Expansion Slots: 2 Mini-SIM
Memory and Processor
RAM Installed: 200 megabyte
Flash Memory Installed: 750 megabyte
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 95% RH
MTBF: 21.3 Year
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Dimensions and Weight
Height: 2.1 inch
Width: 8.7 inch
Depth: 6.7 inch
Weight: 4.41 lbs
Included Items
Included Accessories: LPWA antenna
Certifications and Listing
Compliant Standards: IEEE 802.1x
Warranty
Service Activation: No
