Product Information

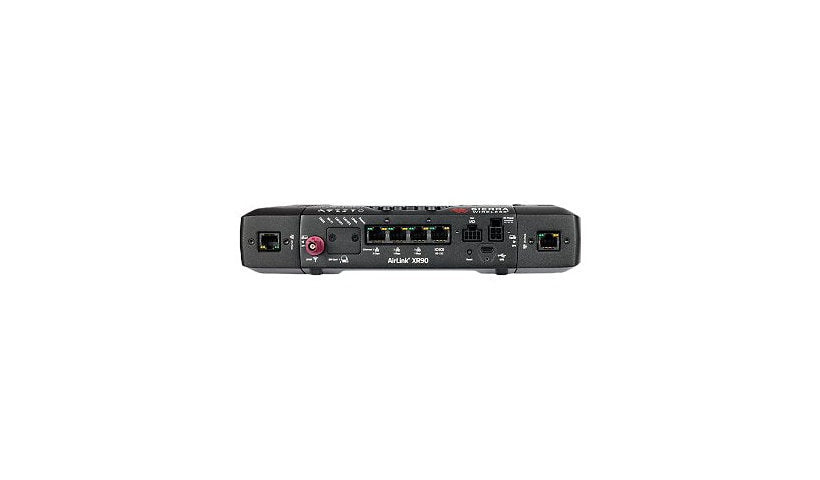

The Sierra Wireless AirLink XR90 Dual 5G is an in-vehicle router aimed at public safety and transit fleets, carrying two independent Wi-Fi 6 radios with 4x4 MIMO. It offers a 5GbE port, four GbE ports, two RS-232, GPIO/CAN and USB-C, with up to 2400 Mbps throughput and FIPS 140-2 encryption.
Key Features
- Dual 5G cellular, dual Mini-SIM
- Dual 4x4 MIMO Wi-Fi 6, up to 256 clients
- 1 x 5GbE, 4 x GbE, 2 x RS-232, GPIO/CAN
- Up to 2400 Mbps, 1150 Mbps firewall
- FIPS 140-2, IPSec VPN (10 tunnels)
- Aluminum housing, ALMS management
Product Information
Product Type #2: Wireless cellular modem
Brand: Sierra Wireless
Manufacturer: Sierra Wireless
Product Line: Sierra Wireless AirLink
Model: XR90
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: IPSec
Routing Protocol: Policy-based routing (PBR), Static IPv4 routing, Static IPv6 routing
Bridge & Router: Firewall throughput (TCP): 1150 Mbps, Maximum throughput: 2400 Mbps, VPN throughput (TCP single session): 350 Mbps
Authentication Method: RADIUS
Encryption: 128-bit AES, 192-bit AES, 256-bit AES, 256-bit SHA, 384-bit SHA, 512-bit SHA, FIPS 140-2, IKEv1, IKEv2, WPA2-Enterprise, WPA2-Personal, WPA3, WPA3-Enterprise, WPA3-Personal
Modem Transmission Data Rate: 4.5 GBps
Capacity: Concurrent VPN tunnels: 10, SSIDs per radio: 4, Wireless clients: 256
Wireless LAN: 802.11a/b/g/n/ac/ax
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: 4G LTE, 5G, HSPA+
Operating System Edition: AirLink OS
Key Features: Firewall, USB port, VPN support
Features: 4x4 MIMO technology, 802.1x authentication, Aluminum housing, Authentication, Authorization and Accounting (AAA), Dead Peer Detection (DPD), DMZ support, NAT support, Port forwarding, QoS, REST API interface, Secure firmware update, Transient voltage protection, VPN Server
Software Type: AirLink Management Service (ALMS)
Edition: Dual 5G
Connectivity
Interface Provided: Antenna: FAKRA connector, AUX: GPIO/CAN, LAN: 1 x 5GBase-T - RJ-45, LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45, Serial: 2 x RS-232, USB: 1 x 24 pin USB-C
Expansion Slots: 2 (total) / 2 (free) x Mini-SIM
Memory and Processor
RAM Installed: 200 megabyte
Flash Memory Installed: 750 megabyte
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: Up to 95% RH
Physical Characteristics
Form Factor (Hubs & Switches): In-vehicle
Status Indicators: Cellular 1, Cellular 2, Management, Power, Wi-Fi
Built-in Devices: GNSS receiver
Dimensions and Weight
Height: 2.1 inch
Width: 8.7 inch
Depth: 10.6 inch
Weight: 7.1 lbs
Certifications and Listing
Compliant Standards: IEEE 802.11ax, IEEE 802.1x
Warranty
Service Activation: No
