Product Information

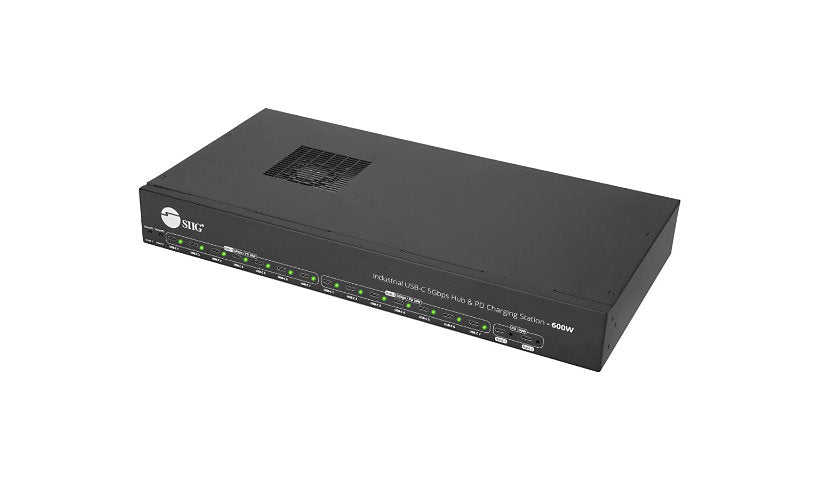

SIIG's ID-US0B11-S3 is an industrial-grade 600W charging hub with 16 USB-C PD ports and a 5 Gbps USB hub, with two 100W host ports and fourteen 30W device ports, for desktop or rack mounting.
Key Features:
- 16 USB-C PD ports; 600W total
- 2x 100W host + 14x 30W
- 5 Gbps USB hub
- Desktop or rack mount
Specifications:
- Brand: SIIG
- Manufacturer Part Number: ID-US0B11-S3
- Standards & Compliance: CP65, cULus, FCC, IC, RoHS, UL, UL E183223, Power Delivery 2.0, Power Delivery 3.0
- Feature Set: BC1.2 fast charging support, ESD Protector, Metal housing, Over-current protection, Over-voltage protection, Overheat protection, Pulse-Per-Second (PPS), Short circuit protection
- Form Factor (Hubs & Switches): Desktop, Rack-mountable
- Ports: 16
- Product Category: Hub
- Status Indicators: Connection status, Power
- Interface Provided: 14× USB-C 30 Watt, 2× USB-C 100 Watt
- Port Quantity: 16
- Port Type: USB-C (Power Delivery)
- Frequency: 50/60 Hz
- Output Current: 3 ampere
- Power Provided: 600 watt
- Required Voltage: AC 110 volt
- Max Operating Temperature: 131 degree Fahrenheit
- Max Storage Temperature: 158 degree Fahrenheit
- Min Operating Temperature: 14 degree Fahrenheit
- Min Storage Temperature: -4 degree Fahrenheit
- Operating Humidity: 20-90% RH (non-condensing)
- Performance: Data transfer rate: 5 Gbps
- Cables: 2× USB-C cable 3.3 ft
- Included Accessories: 19" rack mounting kit, Power cable
- Height (Rack Units): 2
- Color: Black
- Listed Dimensions: Height 2.2 in, Width 17.3 in, Depth 8.1 in
- Weight: 6.37 lbs
- Warranty: 2-year limited warranty
