Product Information

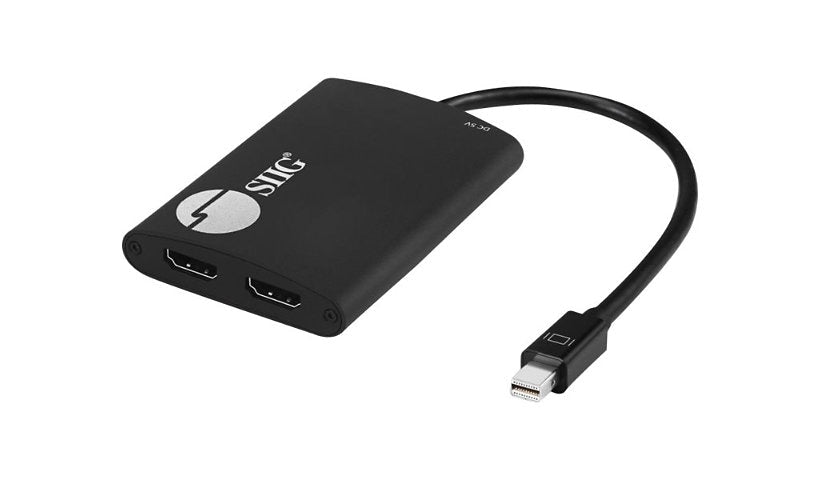

SIIG's CE-DP0L11-S1 connects two HDMI displays to one Mini DisplayPort 1.2 output using MST, with mirror, extended and video wall modes (video wall needs AMD Eyefinity or NVIDIA Surround). It supports up to 3840 x 2160 at 30 Hz and 7.1 audio.
Key Features:
- Mini DisplayPort input to 2x HDMI outputs
- Up to 3840 x 2160 at 30 Hz; 7.1 audio
- Mirror, extend and video wall modes
- Micro-USB power port; mDP cable included
- TAA compliant; FCC, RoHS
Specifications:
- Brand: SIIG
- Manufacturer Part Number: CE-DP0L11-S1
- Standards & Compliance: DisplayPort 1.2a, FCC, Plug and Play, RoHS
- Feature Set: 4K resolution support, 7.1 channel audio support, Supports MultiStream (MST)
- Form Factor (Hubs & Switches): Desktop
- Ports: 2
- Product Category: Video/audio splitter
- Subcategory: Peripheral sharing and hubs
- Switching Type: HDMI
- Interface Provided: 1 x micro-USB (power only), 2 x HDMI output
- Port Quantity: 2
- Port Type: HDMI
- KVP Max Resolution: 3840 x 2160
- KVM V-Sync Rate At Max Resolution: 30 Hz
- Max Operating Temperature: 104 degree Fahrenheit
- Max Storage Temperature: 158 degree Fahrenheit
- Min Operating Temperature: 32 degree Fahrenheit
- Min Storage Temperature: -4 degree Fahrenheit
- Operating Humidity: 20 90% (non-condensing)
- Depth: 3.5 in
- Color: Black
- TAA Compliant: Yes
- Listed Dimensions: Height 0.6 in, Width 2.4 in
- Weight: 3.04 oz
- Warranty: 3-year limited warranty
