Product Information

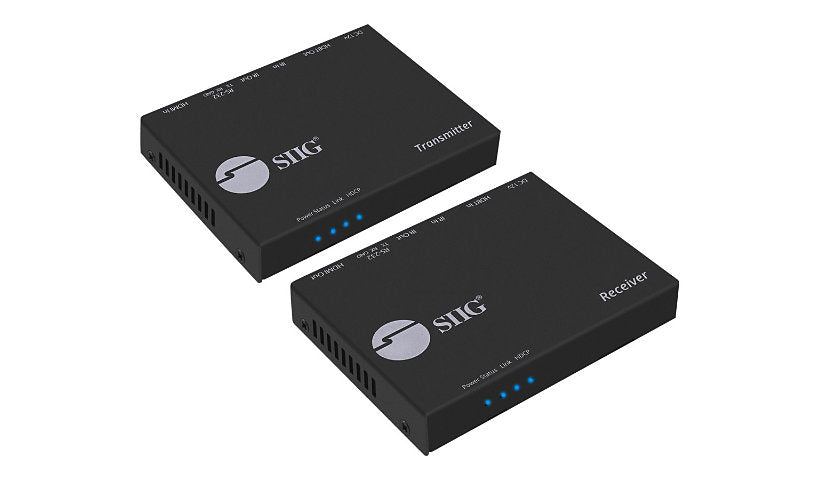

This SIIG HDBaseT kit extends HDMI 1.4 audio and video from your source to a remote display up to 330 ft (100 m) at 1080p, or 230 ft (70 m) at 4K (3840 x 2160), over one Cat5e/6 cable. It supports up to 3840 x 2160 at 30Hz (YUV 4:4:4 8-bit or 4:2:0 10-bit) and uncompressed 7.1-channel audio including DTS-HD Master Audio and Dolby TrueHD. Power over Cable lets one adapter power both units, bi-directional IR lets you control the source or display from either end, and RS-232 pass-through is included. It is TAA compliant. Backed by a 3 year limited warranty.
Key Features
- HDBaseT HDMI extender kit
- 1080p up to 328 ft, 4K up to 230 ft
- Power over Cable
- Bi-directional IR, RS-232
- TAA compliant
- 3 year limited warranty
Product Information
Brand: SIIG
Manufacturer: Siig
Product Line: SIIG
Model: CE-H23F11-S1
Product Type: Video/audio/infrared/serial extender
Form Factor: External
Technical Information
Features: 4K resolution support, 7.1 channel audio support, HDCP compliant, Power over cable (PoC)
Dimensions and Weight
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Connectivity Technology: Wired
Data Link Protocols: HDBaseT, HDMI
Max Transfer Distance: 328 ft
Transmission Medium: CAT 5e/6
Interface Provided: 1 x HDMI (output) - 19 pin HDMI Type A female, 1 x IR (input) - mini jack female, 1 x IR (output) - mini jack female, 1 x RS-232 - 3 pin Phoenix
KVP Max Resolution: 3840 x 2160
Frequency: 50 - 60 hertz
KVM V-Sync Rate At Max Resolution: 30 Hz
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Device Type: External power adapter
Kit: Transmitter and receiver
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: FCC, RoHS
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
