Product Information

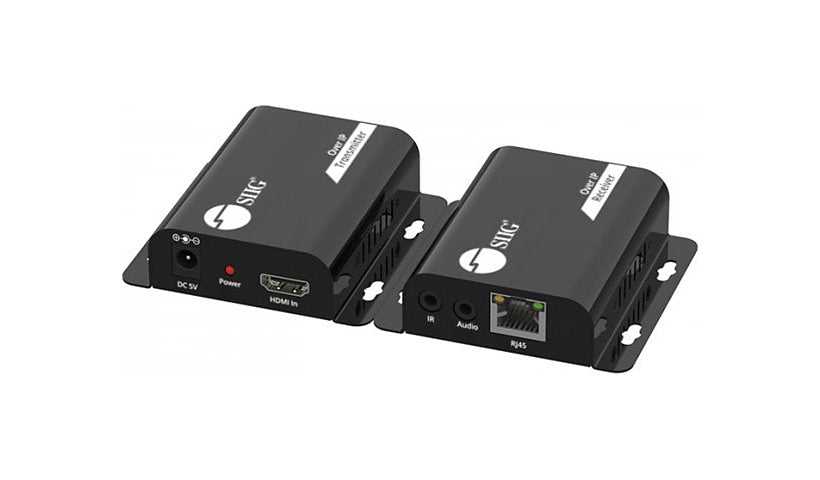

This SIIG HDMI over IP extender sends Full HD 1080p video and audio up to 492 ft (150 m) over standard Cat5e/6 network cable, ideal for digital signage, education, broadcasting and commercial AV. Expand with standard unmanaged Gigabit switches for one-to-many setups, with one transmitter feeding up to 253 receivers (additional receiver CE-H3IP11-S1 sold separately). IR pass-through (20–60KHz) lets you control the source from the receiver location. It supports stereo audio over HDMI, and 3.5mm outputs on both units provide PCM 2-channel audio extraction.
Key Features
- HDMI over IP extender
- 1080p up to 492 ft (150 m)
- One-to-many, up to 253 receivers
- IR pass-through
- Audio extraction on both units
Product Information
Brand: SIIG
Manufacturer: Siig
Product Line: SIIG
Model: CE-H3IP01-S1
Product Type: Video/audio/infrared extender
Form Factor: External
Technical Information
Data Transfer Rate: 4.95 GBps
Features: Audio extraction support, LPCM 2.0 support, Metal housing, One-to-Many, Reset button
Dimensions and Weight
Width: 3 inch
Height: 0.9 inch
Depth: 3 inch
Weight: 4.16 ounce
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Connectivity Technology: Wired
Data Link Protocols: HDMI
Max Transfer Distance: 492 ft
Remote Management: TCP/IP
Interface Provided: 1 x audio line-out (receiver) - mini jack, 1 x audio line-out (transmitter) - mini jack, 1 x HDMI output (receiver) - 19 pin HDMI Type A, 1 x HDMI output (transmitter) - 19 pin HDMI Type A, 1 x IR input (receiver) - mini jack, 1 x network (receiver) - RJ-45, 1 x network (transmitter) - RJ-45
KVP Max Resolution: 1080p
Frequency: 50/60 hertz
Required Voltage: AC 100-240 volt
KVM V-Sync Rate At Max Resolution: 60 Hz
Max Operating Temperature: 122 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 - 80% RH (non-condensing)
Device Type: External power adapter
Cables: 1 x IR emitter cable, 1 x IR receiver cable
Included Accessories: 2 power adapters
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: HDCP 1.2
