Product Information

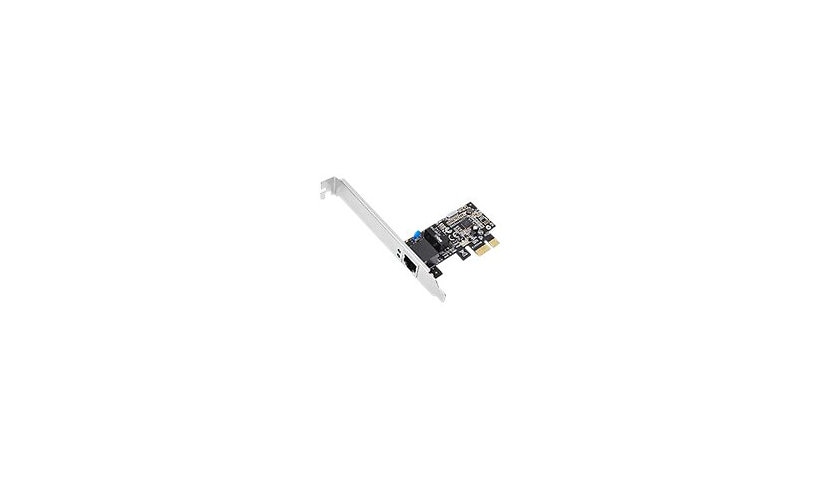

The SIIG CN-GP1021-S3 adds one Gigabit Ethernet RJ-45 port to a desktop or workstation through a PCI Express x1 slot. It is built on the Realtek RTL8111H controller, runs at 10, 100 or 1000 Mbps with auto-negotiation and full duplex, and supports jumbo frames, VLANs, flow control and Wake on LAN. The dual profile design fits standard and low profile cases. It works with Windows XP through 8, Windows Server 2003 to 2008 R2 and Mac OS X 10.5 or later.
Key Features
- 1 x Gigabit RJ-45 port
- Realtek RTL8111H
- PCI Express x1
- Jumbo frames and VLAN
- Wake on LAN
- Dual profile bracket
Product Information
Brand: SIIG
Manufacturer: Siig
Product Line: SIIG
Model: Dual Profile Gigabit Ethernet PCIe - up to 1000Mb/s data transfer rate
Product Type: Network adapter
Packaged Quantity: 1
Network and Communication
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Cable Type: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Data Transfer Rate: 1 GBps
Operating System Required: Apple MacOS X 10.5 or later, Microsoft Windows 2000, Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2008 R2, Microsoft Windows Vista / XP / 7 / 8, Microsoft Windows Vista / XP / 7 / 8 (64-bit versions)
Features: Auto-uplink (auto MDI/MDI-X), Flow control, Full duplex mode, Jumbo Frames support, VLAN support, Wake On LAN (WOL)
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45
Network & Adapter Ports: 10/100/1000
Compatible Slots Required: 1 x PCI Express x1
Host Interface: PCI Express x1
Memory and Processor
Processor Brand: Realtek Semiconductor
Processor Number: RTL8111H
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 85% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Status Indicators: Link/activity, Port transmission speed
Dimensions and Weight
Height: 0.6 inch
Width: 4.7 inch
Depth: 3 inch
Certifications and Listing
Compliant Standards #2: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Compliant Standards: FCC, Plug and Play, RoHS
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
Service Activation: No
