Product Information

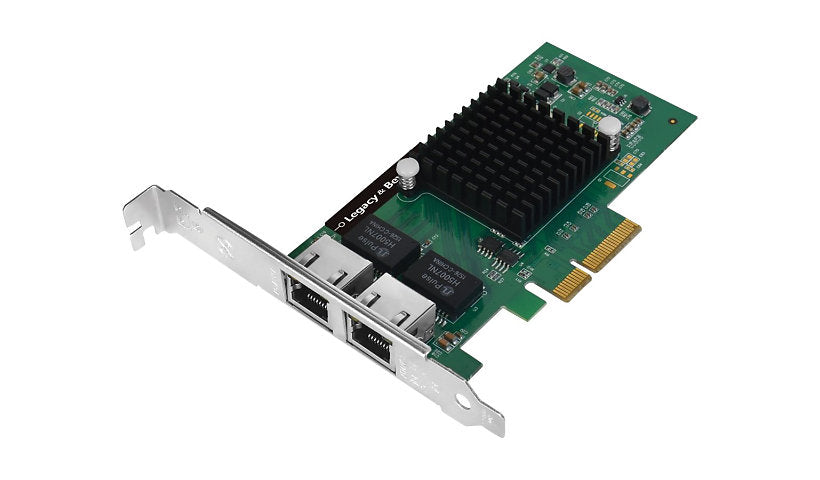

The SIIG LB-GE0014-S1 adds two Gigabit RJ-45 Ethernet ports to a server or desktop through a PCI Express x4 slot, based on the Intel I350-T2. It runs at up to 1000 Mbps with full duplex, Wake on LAN, Energy Efficient Ethernet and DMA coalescing, and fits standard or low profile cases with the included low profile bracket.
Key Features
- 2 x Gigabit RJ-45 ports
- Intel I350-T2 based
- PCI Express x4
- Wake on LAN
- Energy Efficient Ethernet
- Low profile bracket
Product Information
Brand: SIIG
Manufacturer: Siig
Product Line: SIIG
Model: Dual-Port Gigabit Ethernet PCIe 4-Lane Card - I350-T2
Product Type: Network adapter
Packaged Quantity: 1
Color: Green
Color Category: Green
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Cable Type: Ethernet 1000Base-T
Features: DMA Coalescing (DMAC), Energy-Efficient Ethernet (EEE), Full duplex mode, Wake On LAN (WOL)
Connectivity
PCI Specification Revision: PCIe 2.1
Port Quantity: 2
Interface Provided: 2 x 1000Base-T - RJ-45
Network & Adapter Ports: 10/100/1000
Host Interface: PCI Express x4
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Dimensions and Weight
Height: 4.7 inch
Width: 0.8 inch
Depth: 5.4 inch
Weight: 2.72 ounce
Included Items
Included Accessories: Low-profile bracket
Certifications and Listing
Compliant Standards #2: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Compliant Standards: FCC, RoHS
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
