Product Information

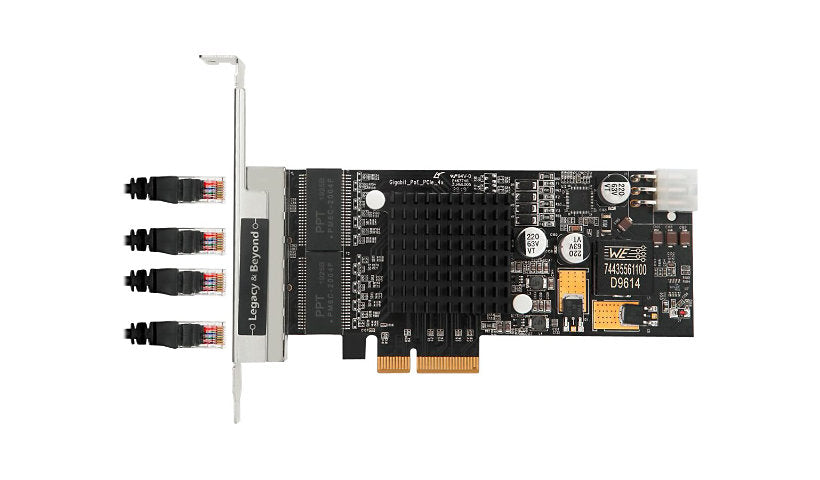

The SIIG LB-GE0811-S1 gives a server or desktop four separate PoE+ Gigabit Ethernet ports through a PCIe 2.1 x4 slot. It is built on the Intel I350-T4 controller, runs at 10, 100 or 1000 Mbps, and supports VLANs, Energy Efficient Ethernet, PXE and Wake on LAN. It works with Windows 7, 8, 8.1 and 10 and Windows Server 2008 R2, 2012 and 2016, and comes low profile with a low profile bracket.
Key Features
- 4 x Gigabit PoE+ RJ-45 ports
- Intel I350-T4 controller
- PCIe 2.1 x4
- VLAN and Wake on LAN
- PXE boot support
- Low profile bracket
Product Information
Brand: SIIG
Manufacturer: Siig
Product Line: SIIG
Model: 4-Port Gigabit Ethernet with POE PCIe Card - Intel 350
Product Type: Network adapter
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Cable Type: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Data Transfer Rate: 1 GBps
Operating System Required: Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits), Microsoft Windows Server 2008 R2 (32/64-bits), Microsoft Windows Server 2012, Microsoft Windows Server 2016
Features: ACPI support, APM support, Energy-Efficient Ethernet (EEE), PXE support, VLAN support, Wake On LAN (WOL)
Software Type: Driver
Connectivity
PCI Specification Revision: PCIe 2.1
Port Quantity: 4
Interface Provided: 4 x 1000Base-T (PoE+) - RJ-45
Network & Adapter Ports: 10/100/1000 (PoE+)
Host Interface: PCI Express 2.1 x4
Memory and Processor
Processor Brand: Intel
Processor Number: I350-T4
Processors Installed: 1
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Dimensions and Weight
Height: 0.9 inch
Width: 6.4 inch
Depth: 4.7 inch
Weight: 3.99 ounce
Included Items
Included Accessories: Low-profile bracket
Certifications and Listing
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
