Product Information

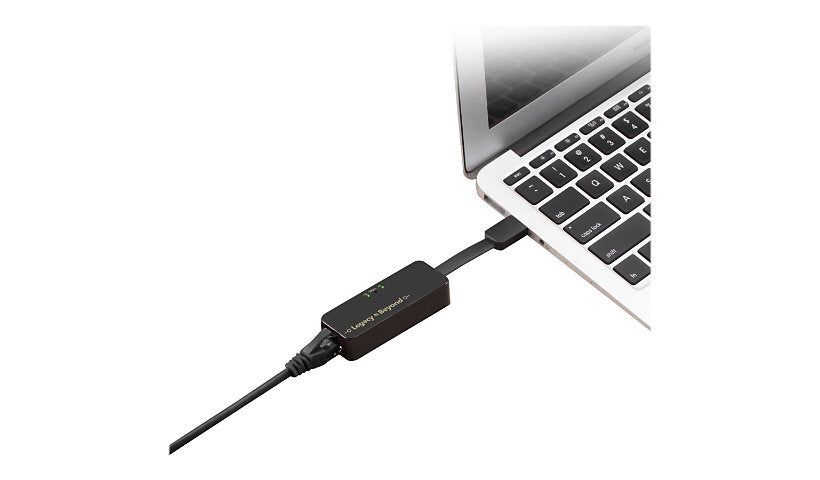

The SIIG LB-US0714-S1 adds a Gigabit RJ-45 port to a computer through USB 3.0, with a stowable built in cable and light design for travel. It uses the Realtek RTL8153 chipset and supports full and half duplex operation, auto MDI-X, Wake on LAN, Energy Efficient Ethernet and jumbo frames, with power and data LEDs. It works with Windows 7 to 10, Windows Server 2003 to 2012 and Mac OS X 10.6 or later.
Key Features
- 1 x Gigabit RJ-45 port
- USB 3.0 connection
- Stowable built in cable
- Realtek RTL8153
- WoL, EEE, jumbo frames
- Windows and Mac
Product Information
Brand: SIIG
Manufacturer: Siig
Product Line: SIIG
Model: Portable USB 3.0 Gigabit Ethernet Adapter
Product Type: Network adapter
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Cable Type: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Operating System Required: Apple MacOS X 10.6 or later, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2008, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Windows 10 (32/64 bits), Windows 8 (32/64 bits)
Features: Energy-Efficient Ethernet (EEE), Flow control, Full duplex capability, Half duplex mode, Jumbo Frames support, Plastic housing, Wake On LAN (WOL)
Software Type: Drivers & Utilities
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45
Network & Adapter Ports: 10/100/1000
Host Interface: SuperSpeed USB 3.0
Memory and Processor
Processor Brand: Realtek Semiconductor
Processor Number: RTL8153
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 85% (non-condensing)
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 0.6 inch
Width: 1 inch
Depth: 2.8 inch
Weight: 1.12 ounce
Included Items
Cables: 1 x SuperSpeed USB cable (integrated)
Certifications and Listing
Compliant Standards #2: FCC, RoHS
Compliant Standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Compliant Standards: FCC, RoHS
Warranty
Service Activation: No
