Product Information

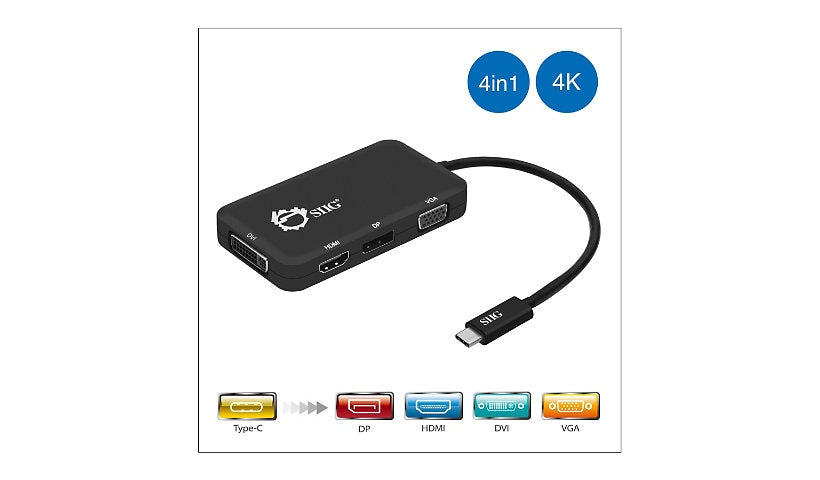

SIIG's CB-TC0611-S1 lets a Thunderbolt 3 or DP Alt Mode USB-C port drive an HDMI, DisplayPort, VGA or DVI screen on an Ultrabook, laptop or desktop. DisplayPort supports 4K at 60 Hz, HDMI 4K at 30 Hz, and DVI and VGA 1080p at 60 Hz. The USB-C source must support DisplayPort Alternate Mode.
Key Features:
- USB-C male to DisplayPort, HDMI, DVI and VGA female
- DP: 4K 60 Hz; HDMI: 4K 30 Hz
- DVI and VGA: 1080p 60 Hz
- Requires DP Alt Mode or Thunderbolt 3
- FCC and RoHS; operating temp 32-113 °F
- Attached cable approx. 5.9 in; Color: Black
Specifications:
- Brand: SIIG
- Manufacturer Part Number: CB-TC0611-S1
- Cable Length: 5.9 in
- Output Interface: DisplayPort, DVI, HDMI, VGA
- Host Interface: USB-C
- Maximum External Resolution: 3840 x 2160
- Maximum Resolution: DVI: 1920 x 1080 / DisplayPort: 3840 x 2160 / HDMI: 3840 x 2160 / VGA: 1920 x 1080
- Output Ports: DisplayPort, DVI, HDMI, VGA
- Video Signal: DisplayPort, DVI, HDMI, VGA
- Max Operating Temperature: 113 degree Fahrenheit
- Min Operating Temperature: 32 degree Fahrenheit
- Operating Humidity: 5 90% (non-condensing)
- Product Category: External video adapter
- Color: Black
- Standards & Compliance: FCC, RoHS
- Weight: 1.9 oz
- Warranty: 1-year limited warranty
