Product Information

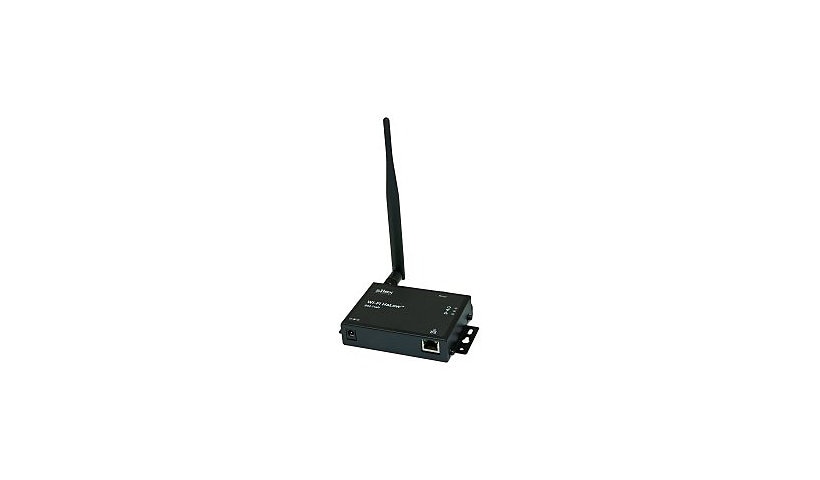

The Silex AP-100AH-US is an 802.11ah Wi-Fi HaLow access point for long range IoT networks, not a standalone antenna. It reaches up to 2 miles in open space, supports up to 675 simultaneous connections and uses 1, 2 or 4 MHz channels. Security includes WPA3-Personal and Enterprise, AES-CCMP, TLS and 802.1X with RADIUS. It has one 10/100 RJ-45 port, an external antenna, NAT and IPv6 support, and uses an external power adapter.
Key Features
- HaLow AP, not an antenna
- 802.11ah long range
- Up to 2 miles
- Up to 675 connections
- WPA3, RADIUS, 802.1X
- 10/100 Ethernet port
Product Information
Brand: Silex
Manufacturer: Silex
Product Line: Silex
Model: AP-100AH
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: Black
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11ah (HaLow)
Network Standard: HTTP, HTTPs
Authentication Method: RADIUS
Encryption: AES-CCMP, TLS, WPA3-Enterprise, WPA3-Personal
Capacity: Simultaneous connections: 675
Wireless LAN: 802.11ah
Network Device: Channel bandwidth: 1 / 2 / 4 MHz
Antenna Form Factor: External
Max Range Open Space: 2 miles
Features: 802.1x authentication, NAT support
Connectivity
Interface Provided: 1 x 10/100Base-T - RJ-45
Power
Device Type: External power adapter
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 90% RH (non-condensing)
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 0.9 inch
Width: 5 inch
Depth: 3 inch
Certifications and Listing
Compliant Standards: FCC, ISED
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
Service Activation: No
