Product Information

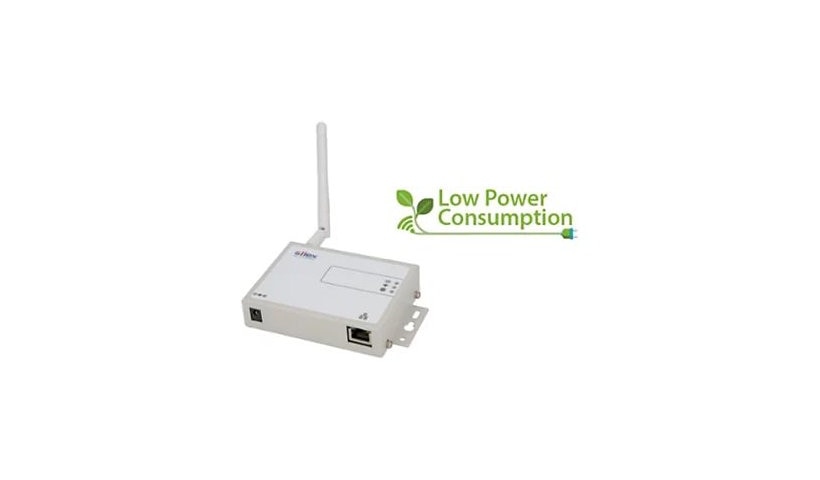

The Silex BR-330AC-LP-US is a low power dual band 802.11a/b/g/n/ac bridge from Ethernet to Wi-Fi for connecting Ethernet IoT and medical devices to secure enterprise Wi-Fi, not an antenna. It draws about 5 W, so it can run from a battery pack or a device's USB port. It uses the Sx-590 module, single stream 1x1 with one external antenna, fast roaming, MAC filtering, WPA2-Enterprise and 802.1X, has one 10/100 RJ-45 port and handles up to 16 clients.
Key Features
- Wi-Fi bridge, not an antenna
- Low power, about 5 W
- Dual band 802.11ac
- WPA2-Enterprise, 802.1X
- Fast roaming
- Up to 16 clients
Product Information
Brand: Silex
Manufacturer: Silex
Product Line: Silex
Model: BR-330AC-LP
Product Type: Bridge
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: AES, TLS 1.2, WEP, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal
Capacity: Maximum number of clients: 16
Wireless LAN: 802.11a/b/g/n/ac
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Antennas: 1
Antenna Form Factor: External
Features: Auto-negotiation, Fast Roaming, Low power consumption, MAC address filtering, Single-stream (1x1)
Connectivity
Interface Provided: LAN: 1 x 10Base-T/100Base-TX - RJ-45
Power
Device Type: External power adapter
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 20 - 80% RH (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Power, Status, WLAN
Dimensions and Weight
Height: 0.9 inch
Width: 5 inch
Depth: 3 inch
Weight: 8.99 ounce
Certifications and Listing
Compliant Standards #2: FCC Class B certified, ICES Class B, RoHS, UKCA, VCCI Class B
Compliant Standards: IEEE 802.1x
Compliant Standards: FCC Class B certified, ICES Class B, RoHS, UKCA, VCCI Class B
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
