Product Information

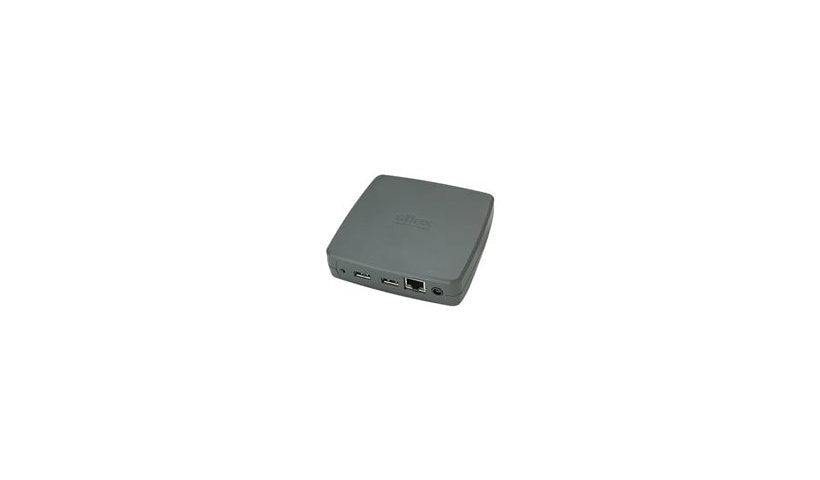

The Silex DS-700-US is a wired USB device server that shares printers, scanners, drives, card readers and other USB devices over the network, so they can sit anywhere and serve several users. It has one gigabit Ethernet port, one USB 3.0 and one USB 2.0 port, supports IPv4 and IPv6, IP and port filtering and print server functions, and draws about 4.2 W from an external adapter.
Key Features
- USB device server
- Gigabit Ethernet
- USB 3.0 and USB 2.0
- Print server support
- IPv4 and IPv6
- About 4.2 W
Product Information
Brand: Silex
Manufacturer: Silex
Product Line: Silex
Model: DS-700
Product Type: Device server
Packaged Quantity: 1
Color Category: Gray
Country: United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, USB 2.0, USB 3.0
Network Standard: LPR/LPD, RAW, TCP/IP
Operating System Required: Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Windows 10 (32/64 bits), Windows 8 (32/64 bits), Windows 8.1 (32/64 bits)
Features: IP address filtering, IPv4 support, IPv6 support, Password protection, Port filtering, Print server
Connectivity
Ports: 2
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x USB 2.0 - Type A, 1 x USB 3.0 - Type A
Power
Device Type: External power adapter
Power Consumption Operational: 4.2 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 80% (non-condensing)
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 1.1 inch
Width: 4.3 inch
Depth: 4.3 inch
Weight: 4.59 ounce
Certifications and Listing
Compliant Standards #2: USB 2.0, USB 3.0
Compliant Standards: FCC Class B certified, ICES Class B, RoHS, VCCI Class B
Compliant Standards: USB 2.0, USB 3.0
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
