Product Information

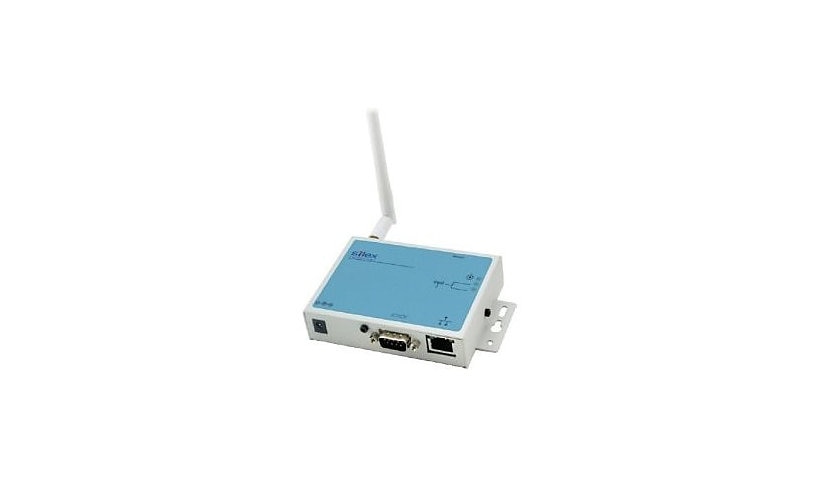

The Silex SD-330AC-1402-US is a serial device server and Ethernet to Wi-Fi bridge, not an antenna. It adds 802.11a/b/g/n/ac Wi-Fi to legacy RS-232 and Ethernet devices through one DB-9 serial port and one 100Base-TX RJ-45 port, and can also run in access point, wired LAN or multi client mode. Security includes FIPS 140-2 validated encryption, AES, WPA2-PSK, EAP-TLS and PEAP. It has one detachable external antenna, draws about 2.5 W from an external power adapter, comes with rubber feet and is TAA compliant.
Key Features
- Wi-Fi bridge, not an antenna
- 802.11a/b/g/n/ac
- RS-232 DB-9 and Ethernet ports
- FIPS 140-2 encryption
- Detachable antenna, 2.5 W
- TAA compliant
Product Information
Brand: Silex
Manufacturer: Silex
Product Line: Silex
Model: SD-330AC-1402
Product Type: Wireless serial device server / bridge
Packaged Quantity: 1
Color Category: Blue, White
Country: United States
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, RS-232C
Network Standard: TCP/IP
Authentication Method: EAP-PEAP
Encryption: 128-bit AES, 128-bit WPA, AES, EAP-TLS, FIPS 140-2, PEAP, WPA-PSK, WPA2-PSK
Wireless LAN: 802.11a/b/g/n/ac
Antennas: 1
Antenna Form Factor: External detachable
Operating System Required: Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2003, Microsoft Windows Server 2008
Features: Access Point operational mode, Ethernet to Wi-Fi Client Bridge (Single Host Mode)
Connectivity
Interface Provided: 1 x 100Base-TX - RJ-45, 1 x RS-232 - DB-9
Power
Device Type: External power adapter
Power Consumption Operational: 2.5 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 20 - 80% RH (non-condensing)
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 0.9 inch
Width: 5 inch
Depth: 3 inch
Weight: 10.76 ounce
Included Items
Included Accessories: Rubber feet
Certifications and Listing
Compliant Standards #2: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Compliant Standards: FCC Class B certified, FIPS 140-2, ICES-003 Class B, RoHS
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
TAA Compliant: Yes
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
