Product Information

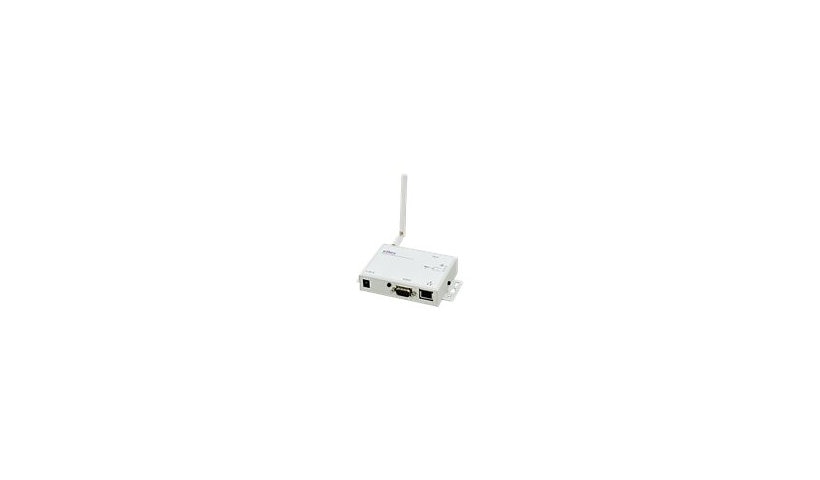

The Silex SD-330AC-US is a wireless serial device server that adds secure Wi-Fi to RS-232C equipment such as industrial and building automation, medical devices, access control, POS, LED signs and label printers. It has one RS-232 DB-9 port, one 10/100 RJ-45 port and dual band 802.11a/b/g/n/ac with a detachable antenna. Security includes WPA2, AES, PEAP, TLS, TTLS, LEAP and EAP-FAST. It draws about 2.5 W from an external adapter and comes with rubber feet.
Key Features
- Wireless serial server
- RS-232 DB-9 port
- Wi-Fi 5 dual band
- 10/100 Ethernet
- WPA2 Enterprise EAP
- About 2.5 W
Product Information
Brand: Silex
Manufacturer: Silex
Product Line: Silex
Model: SD-330AC
Product Type: Wireless device server
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, RS-232C
Network Standard: TCP/IP
Remote Management: Telnet
Authentication Method: EAP-FAST, Extensible Authentication Protocol (EAP)
Encryption: 128-bit WEP, AES, LEAP, PEAP, TLS, TTLS, WPA-PSK, WPA2-PSK
Wireless LAN: 802.11a/b/g/n/ac
Network Band: 2.4 GHz, 5 GHz
Antennas: 1
Antenna Form Factor: External detachable
Operating System Required: Microsoft Windows 2000, Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2012 (32/64-bits), Microsoft Windows XP / Vista / 7 / 8 / 8.1 (32/64 bits), Windows 10
Features: Ad-Hoc Mode, Manageable
Connectivity
Interface Provided: 1 x 100Base-TX - RJ-45, 1 x RS-232 - DB-9
Power
Device Type: External power adapter
Power Consumption Operational: 2.5 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 20 - 80% (non-condensing)
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 0.9 inch
Width: 4.9 inch
Depth: 3 inch
Weight: 10.76 ounce
Included Items
Included Accessories: Rubber feet
Certifications and Listing
Compliant Standards #2: FCC Class B certified, ICES-003 Class B, RoHS, VCCI Class B
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Compliant Standards: FCC Class B certified, ICES-003 Class B, RoHS, VCCI Class B
Not sure this console or device server fits your setup? Send us your equipment models, port counts and connection types, and the DatorPro team will confirm compatibility before you order.
