Product Information

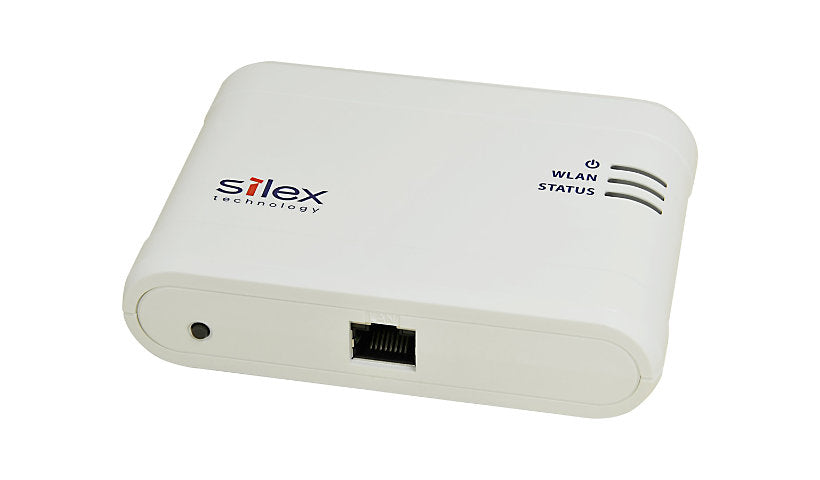

The Silex SX-BR-4600WAN2 is a dual band 802.11a/b/g/n wireless bridge that connects up to 16 wired devices through its Gigabit port to a Wi-Fi network, without driver changes on the connected devices. It supports WPA2 Enterprise authentication and includes a network cable and AC adapter. This is a bridge, not an antenna.
Key Features
- Dual band Wi-Fi bridge
- Up to 16 wired devices
- Gigabit RJ-45
- WPA2 Enterprise, EAP
- AC adapter + cable included
- 2 year warranty
Product Information
Brand: Silex
Manufacturer: Silex
Product Line: Silex
Model: SX-BR-4600WAN2
Product Type: Wireless bridge
Packaged Quantity: 1
Country: United States
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Authentication Method: EAP-FAST, Extensible Authentication Protocol (EAP)
Encryption: 128-bit WEP, 64-bit WEP, AES, LEAP, PEAP, TKIP, TLS, TTLS, WPA-PSK, WPA2-PSK
Capacity: Connection / user qty: 16
Wireless LAN: 802.11a/b/g/n
Network Band: 2.4 GHz, 5 GHz
Features: Auto-uplink (auto MDI/MDI-X)
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 80%
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 1.1 inch
Width: 4.4 inch
Depth: 3.1 inch
Weight: 4.59 ounce
Included Items
Cables: 1 x network cable
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - parts and labor - 2 years
