Product Information

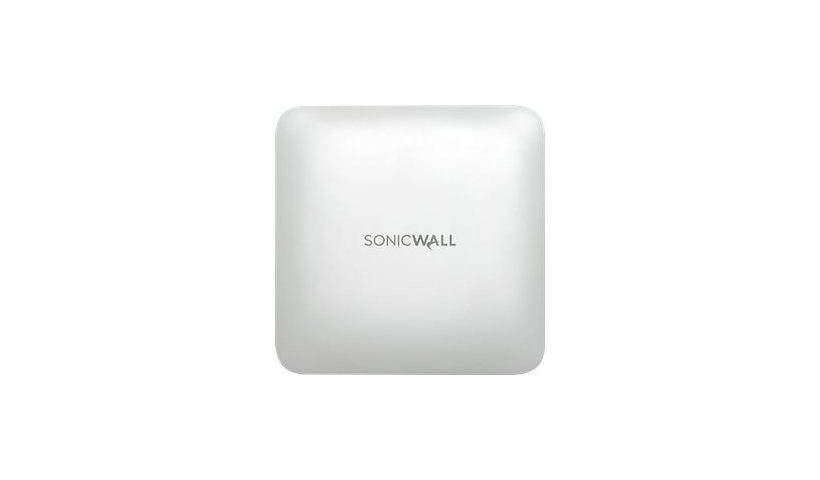

The SonicWall SonicWave 641 (03-SSC-0346) is a plenum rated Wi-Fi 6 access point with 4x4 MU-MIMO up to 4.8 Gbps and a dedicated third scanning radio. It has a 2.5G PoE+ port, USB 3.0 and BLE, and comes with a SonicWall 802.3at PoE injector and 1 year of Secure Wireless Network Management and Support.
Key Features
- Wi-Fi 6 dual band, 4x4 MU-MIMO
- Up to 4.8 Gbps, 3rd scanning radio
- 2.5G RJ-45 PoE+, USB 3.0
- Bluetooth 5.0 LE
- 802.3at PoE injector included
- 1 year Secure Wireless management
Product Information
Brand: SonicWALL
Manufacturer: SonicWALL
Product Line: SonicWall SonicWave
Model: 641
Product Type: Wireless access point
Device Type: Power injector
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: IPSec
Authentication Method: Active Directory, RADIUS
Encryption: AES, SSL, WPA2, WPA3
Data Transfer Rate: 4.804 GBps
Line Coding Format: 1024 QAM
Capacity: Maximum number of clients: 256, Recommended number of clients: 150, Virtual access points: up to 8
Wireless LAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.0 LE
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
IoT Communications Technology: Bluetooth Low Energy (LE)
Internet of Things (IoT) Compatible: Yes
Antennas: 8
Antenna Form Factor: Internal
Features: 4x4 MU-MIMO technology, Airtime Fairness, Band steering, Beamforming technology, Captive Portal, Cloud ACL, Dedicated 3rd scanning radio, DFS support, FairNet wireless bandwidth allocation, Floor plan view, Integrated Switch Management, LDAP support, Lightweight hotspot messaging, Multiple SSID support, One-Time Password (OTP), Plenum-rated, Reset button, Rogue AP detection, Security slot (Kensington security lock compatible), Single Sign-On (SSO) support, SMS alert, Target Wake Time (TWT), Topology view, Transmit Power Control (TPC), Virtual Access Points (VAP), WAN failover, WAN load balancing, WiFi Planner, Wireless Guest Services, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), Wireless Mesh support, Zero-Touch Deployment
Bundled Services: 1 year Secure Wireless Network Management and Support
Connectivity
Interface Provided: 1 x 2.5 GBase-T (PoE+) - RJ-45, 1 x console - micro-USB, 1 x USB 3.0
Power Over Ethernet (PoE): PoE+
Power
Power Consumption Operational: 23 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Ceiling Mountable
Status Indicators: 2.4 GHz, 5 GHz, Bluetooth Low Energy (BLE), LAN, Power, Secure, WWAN
Dimensions and Weight
Height: 1.5 inch
Width: 7.9 inch
Depth: 7.9 inch
Weight: 29.98 ounce
Included Items
Included Accessories: Ceiling mounting kit
Bundled With: SonicWALL 802.3at Gigabit PoE Injector
Certifications and Listing
Compliant Standards: IEEE 802.11e, IEEE 802.11i, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, IEEE 802.3at, IEEE 802.3bz, Wi-Fi CERTIFIED
Compliant Standards: ACMA, ANATEL, AS/NZS 2772, AS/NZS 4268, BSMI, CAN/CSA-C22.2 No. 62368-1-14, CB, China RoHS, CISPR 32, CNS 1336-1, CNS 13438, cUL, EN 300 328, EN 301 489-1, EN 301 489-17, EN 301 893, EN 50385, EN 55032, EN 60950-1, EN 62368-1, EN55024, EU RoHS, FCC, FCC Part 15 C, FCC Part 15 E, FCC Part 2, ICES Class B, IEC 60950-1, IEC 62368-1, ISED, LP002, Mexico CoC, MSIP, NCC, RCM, RED, RSS-102, RSS-247, TELEC, TUV GS, UL, UL 60950-1, UL 62368-1, VCCI, VCCI Class B, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
