Product Information

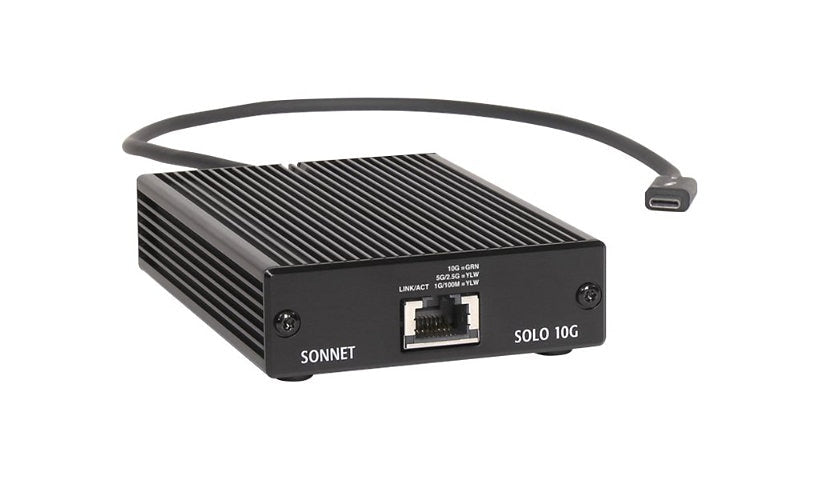

The Sonnet Solo10G Thunderbolt 3 Edition is a pocket sized adapter that adds a 10GBase-T RJ-45 port to any Thunderbolt 3 computer or the end of a Thunderbolt 3 chain. It also runs at 5G, 2.5G, 1G and 100M, reaching 55 m over Cat 6 or 100 m over Cat 6A cable. It is fanless and needs no power adapter, and supports Audio Video Bridging, Energy Efficient Ethernet and jumbo frames. It works with macOS 10.13.4 or later and Windows 10 64-bit, and includes a 1.6 ft Thunderbolt 3 cable.
Key Features
- 1 x 10GBase-T RJ-45 port
- Thunderbolt 3 connection
- Multi-gig 100M to 10G
- Fanless, bus powered
- AVB and EEE support
- 1.6 ft TB3 cable included
Product Information
Brand: Sonnet
Manufacturer: Sonnet Technologies
Product Line: Sonnet
Model: Solo10G
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: TCP/IP, UDP/IP
Cable Type: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10GBase-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T, NBase-T
Data Transfer Rate: 10 GBps
Operating System Required: Apple macOS 10.13.4 or later, Windows 10 64-bit Edition
Features: Audio Video Bridging (AVB), Energy-Efficient Ethernet (EEE), Flow control, Interrupt coalescing, IPv4 support, Jumbo Frames support, Large Receive Offload (LRO), Large Send Offload (LSO), Message Signaled Interrupts (MSI), Multicast filtering function, Receive Side Scaling (RSS), TCP Segmentation Offload (TSO)
Edition: Thunderbolt 3 Edition
Connectivity
Port Quantity: 1
Interface Provided: 1 x 10GBase-T - RJ-45
Network & Adapter Ports: 10Gb Ethernet
Host Interface: Thunderbolt 3
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 1.1 inch
Width: 3.1 inch
Depth: 4.5 inch
Weight: 8.46 ounce
Included Items
Cables: 1 x Thunderbolt 3 / USB-C cable - 1.6 ft
Certifications and Listing
Compliant Standards #2: IEEE 802.1Qav, IEEE 802.3az
Compliant Standards: RoHS
Compliant Standards: IEEE 802.1Qav, IEEE 802.3az
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
