Product Information

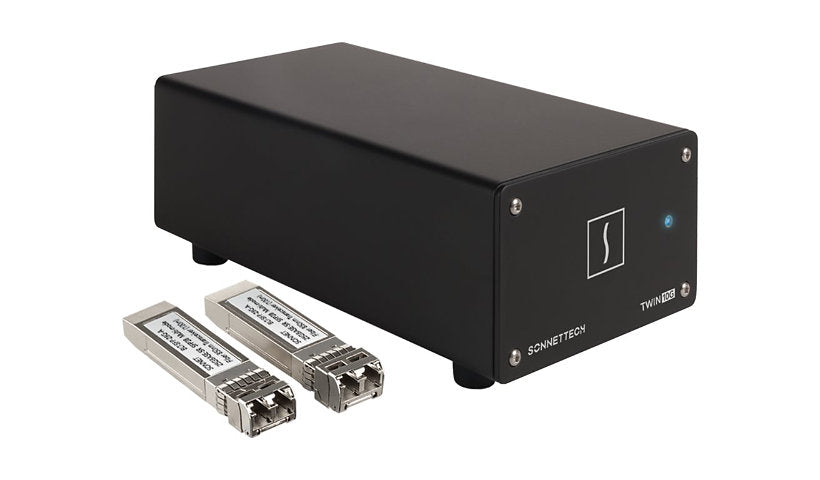

The Sonnet Twin 25G is an external adapter that adds two 25 Gigabit SFP28 ports to a Thunderbolt 5 computer, also supporting 10 Gigabit Ethernet. It has two Thunderbolt ports for daisy chaining and ships with 25GBase-SR SFP28 transceivers, a power adapter, a 2.3 ft Thunderbolt cable and a ThunderLok retainer clip. It supports jumbo frames up to 9,000 bytes, RSS and flow control, and works with macOS 13 or later, Windows 10 and 11 and Linux kernel 5.4 or later.
Key Features
- 2 x 25GbE SFP28 ports
- Thunderbolt 5 connection
- SR transceivers included
- 2 x Thunderbolt ports
- macOS, Windows, Linux
- Power adapter included
Product Information
Brand: Sonnet
Manufacturer: Sonnet Technologies
Product Line: Sonnet
Model: Twin 25G
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Black
Network and Communication
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet
Network Standard: IPv4, TCP, UDP
Data Transfer Rate: 25 GBps
Operating System Required: Apple macOS 13 or later, Apple macOS Sequoia 15.x, Linux Kernel 5.4 or later, Microsoft Windows 10 / 11
Features: Flow control, Jumbo Frames support (up to 9000 bytes), Message Signaled Interrupts (MSI), Multicast filtering function, Receive Side Scaling (RSS)
Connectivity
Port Quantity: 2
Ports (2nd) Quantity: 2
Ports (2nd) Type: SFP28
Interface Provided: 2 x 25GBase-SR - SFP28, 2 x Thunderbolt - Type C
Network & Adapter Ports: Thunderbolt
Host Interface: Thunderbolt 5
Power
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 2.9 inch
Width: 4.1 inch
Depth: 8.3 inch
Weight: 2.29 lbs
Included Items
Included Accessories: 25Gbase-SR transceiver (short-range), Power adapter, SFP28 transceiver, ThunderLok Thunderbolt Retainer Clip
Cables: 1 x Thunderbolt cable - 2.3 ft
Certifications and Listing
Compliant Standards: IEC 62368-1, IEC 62368-2, RoHS III 2015/863/EU
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
