Product Information

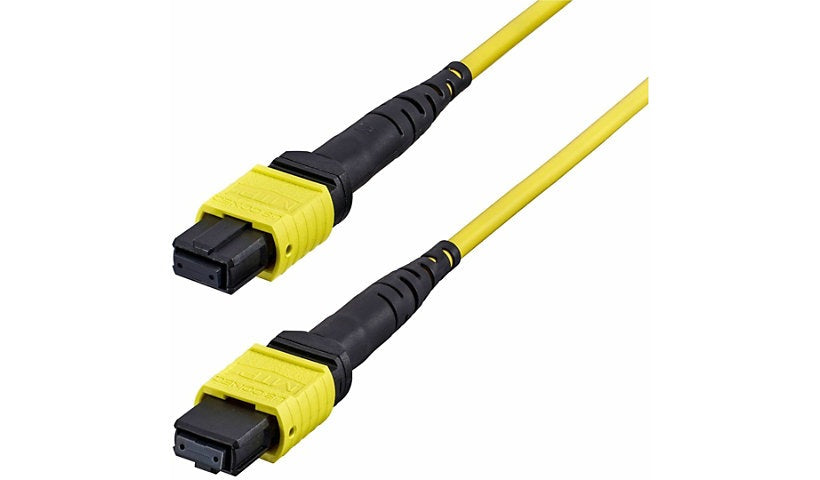

This OS2 MTP®/MPO single mode fiber cable handles high-density 40G and 100G links between switches and servers, cutting down on cable bulk and making routing across data hall racks easier. Thanks to its 24-fiber layout, it gives you fast MTP®/MPO links across multi-fiber setups.
Made with OS2 9/125 µm laser-optimized Corning glass, the cable gives steady, high-bandwidth performance over long data center and backbone runs. The Type-B polarity MTP® Elite connector keeps transmit and receive correctly aligned on multi-lane connections, so no extra crossover parts are needed. Every cable is individually tested for signal integrity.
The OFNP plenum-rated jacket satisfies tough fire safety and low smoke requirements, so the cable can be routed through air-handling spaces in commercial and enterprise buildings, including data center and in-wall pathways.
It is designed for structured MTP®/MPO systems such as multi-fiber trunks, cassettes and patching setups, so your fiber network can grow and move between 10G, 40G and 100G with ease. The 24-fiber format packs in more connections with fewer cables, for cleaner and more efficient installs.
Specifications:
Brand: StarTech.com
Manufacturer part number: OS2MTP24BOFNP10M
Cable type: Patch Cable
Fiber mode: Singlemode
Core/cladding: 9/125 µm
Connector gender: female on both ends
Data rate: 100 Gbit/s
Jacket: OFNP, Plenum
Features: Angled Physical Contact (APC), Corning Glass, Laser-optimized
Length: 10 m (32.81 ft)
Height: 0.3 inch
Width: 0.6 inch
Weight: 0.19 lb
Color: Yellow
Works with: Fiber Optic Cassette, Network Device, Optical Panel, Patch Panel, Rack, Server, Switch
Use: Backbone, Commercial, Data Center
Quantity in package: 1
Warranty: Lifetime
Wavelength: 1310 nm or 1550 nm
Cable outer diameter: 3.0 mm
Temperature range: 0 to 70°C (32 to 158°F)
Best for: data centers, SANs and QSFP+ links
