Product Information

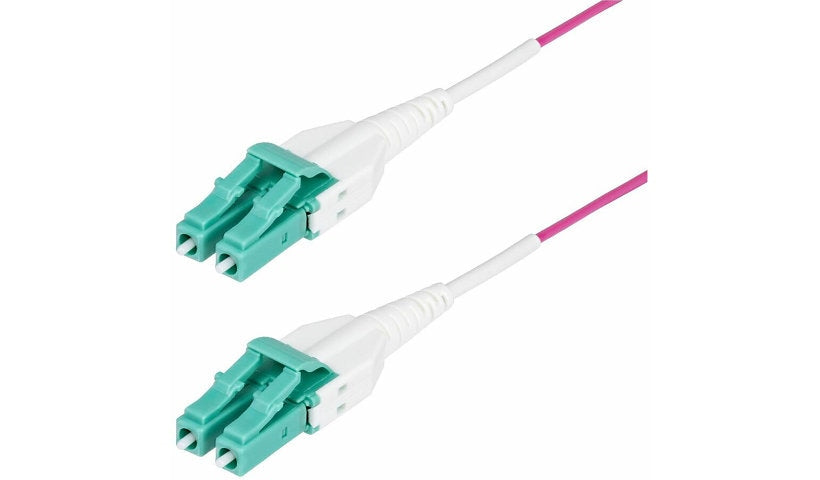

This OM4 LC to LC multimode duplex patch cable gives you dependable links on 40 and 100 Gigabit networks. Its Erika Violet jacket follows the TIA color code, so OM4 is easy to tell apart from aqua OM3/OM4 cabling, and the slim uniboot connectors are easy to plug in and pull out in crowded racks.
Performance: Laser-optimized multimode fiber (LOMMF) makes it a great match for 850 nm and 1350 nm VCSEL and LED sources. Precision ceramic ferrules keep the fibers aligned to hold insertion loss down, and the UPC polished LC ends give much better return loss than older PC polishing.
Riser rated: The flame-retardant OFNR (Optical Fiber Nonconductive Riser) jacket limits flame spread between floors, so the cable is safe for riser spaces and vertical shafts in commercial buildings and helps you meet fire codes in multi-story sites.
Compatibility: The 50/125 µm cable is backward compatible with OM3 and with 1, 10 and 40 Gbps networks. StarTech.com tests its fiber cables to strict insertion loss limits for reliable compatibility.
Specifications:
Brand: StarTech.com
Manufacturer part number: OM4RLCLC7M
Cable type: Patch Cable
Fiber mode: Multimode
Core/cladding: 50/125 µm
Connector gender: male on both ends
Data rate: 100 Gbit/s
Jacket: OFNR, Riser
Features: EMI Protection, Flame Retardant, Laser-optimized, Strain Relief, Uniboot Connector, UPC Polished Connector, Wear Resistant
Length: 7 m (22.97 ft)
Height: 0.4 inch
Width: 0.5 inch
Color: Erika Violet
Works with: Network Device, Server, Switch, Transceiver
Use: Commercial
Quantity in package: 1
Warranty: Lifetime
Modal bandwidth: 2000 MHz·km or higher at 850 nm (VCSEL source)
Cable outer diameter: 1.6 mm
Temperature range: -20 to 60°C (-4 to 140°F)
Best for: links between servers and SANs
