Product Information

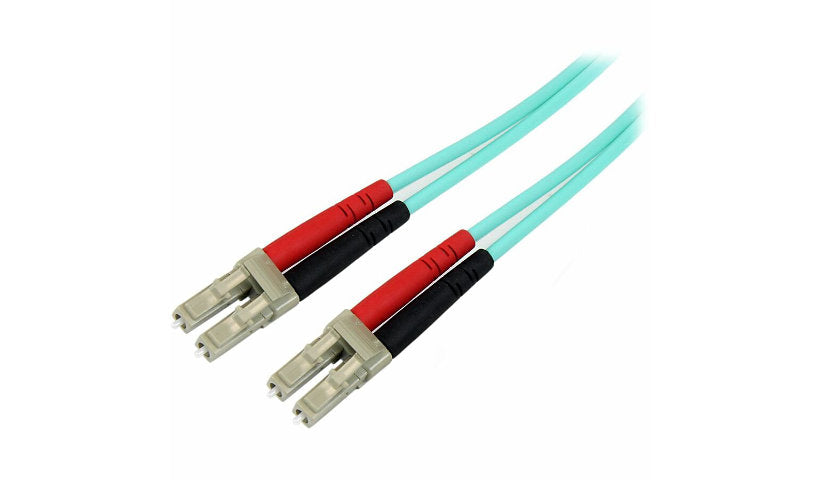

This 6 meter (19.7 ft) StarTech.com aqua patch cord uses 850 nm laser optimized multimode fiber (LOMMF), OM3 grade, with a 50/125 micron core and LC connectors on both ends. It delivers fast, high bandwidth transfers on 10 Gigabit Ethernet and Fibre Channel networks and is a natural pick for runs between backbone switches, hubs, routers and other high end network equipment.
The low smoke zero halogen (LSZH) flame retardant jacket limits smoke, toxicity and corrosion under high heat or fire, so it suits industrial sites, central offices, schools and homes where building codes apply. An aramid sheath surrounds the fiber, which is optimized for an effective bandwidth of at least 2000 MHz·km at 850 nm with a VCSEL source. Each cable is individually tested for signal integrity.
General
Brand: StarTech.com
Part number: A50FBLCLC6
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 6 m (19.7 ft)
Fiber: OM3 laser optimized multimode, 50/125 µm
Cable mode: Duplex
Data transfer rate: 100 Gbit/s
Modal bandwidth: 2000 MHz·km or higher at 850 nm (VCSEL)
Jacket: LSZH
Color: Aqua
Features: Corrosion Resistant, Crush Resistant, EMI Protection, Flame Retardant, Laser-optimized, Tensile Strength, UPC Polished Connector
Connectors
Connectors: LC/UPC (male) to LC/UPC (male)
Physical and Environmental
Cable OD: 2.9 mm
Reinforcement: Aramid sheath
Width: 0.6 inch
Height: 0.4 inch
Weight: 0.15 lb
Operating temperature: -20°C to 60°C (-4°F to 140°F)
Compatibility
Supported devices: Hub, Network Device, Patch Panel, Router, Server, Switch, Transceiver
Typical use: Backbone, Data Transmission, Industrial, Office, Residential, School, Telecommunication Network
Compliance and Warranty
Manufacturer warranty: Lifetime
