Product Information

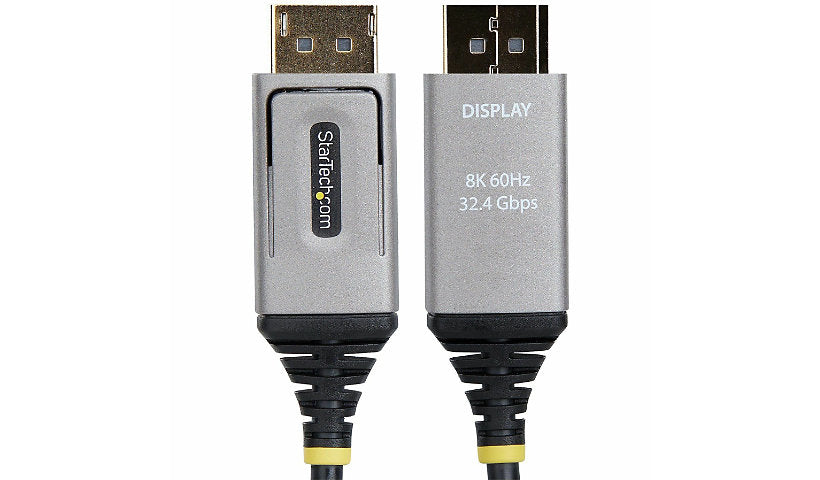

StarTech.com's 8K-AOC-20M-DP-CABLE is a 20 m (66 ft) hybrid fiber/copper active optical DisplayPort 1.4 cable rated CMP for routing through plenum ceilings and in-wall runs. Fiber carries the full 8K 60 Hz video bandwidth while copper conductors handle low-speed signals such as EDID and HDCP, so no external power is needed. It is unidirectional and backward compatible with DisplayPort 1.2 and 1.1.
Key Features:
- DisplayPort 1.4 hybrid AOC, male to male, unidirectional
- 8K 60 Hz; 32.4 Gbps HBR3
- HDR10; up to 12-bit color with DSC; DSC 1.2a; FEC
- HDCP 2.3; 7.1 surround audio
- CMP plenum-rated jacket; no external power
- Gold-plated connectors
- Length: 20 m (66 ft)
Specifications:
- Brand: StarTech.com
- Manufacturer Part Number: 8K-AOC-20M-DP-CABLE
- Connector A: DisplayPort (male)
- Connector B: DisplayPort (male)
- Cable Length: 65.62 ft
- Interface Pairing: Hybrid Fiber Optic
- Max Bandwidth: 32.4 Gbps
- Wire Gauge: 28/30 AWG
- Jacket Material: CMP, Plenum
- Shielded: Yes
- Compatible Device Types: Audio/Video Device, Display, Projector, TV
- Maximum Resolution: 2048 x 1080, 3840 x 2160, 7680 x 4320
- Contact Plating: Gold
- Feature Set: Active, AOC Technology, Damage Resistant, Display Stream Compression (DSC) 1.2, Display Stream Compression (DSC) 1.2a, Durable, EMI Protection, Extended Display Identification Data (EDID), Flexible, Forward Error Correction (FEC) Support, HDCP 2.3, HDR10 Support, High Bit Rate 3 (HBR3), Stranded, Tensile Strength
- Product Category: A/V Cable
- Intended Use: Commercial, Office
- Listed Dimensions: Height 0.5 in, Width 0.8 in
- Weight: 1.17 lb
- Warranty: 2-year limited warranty
