Product Information

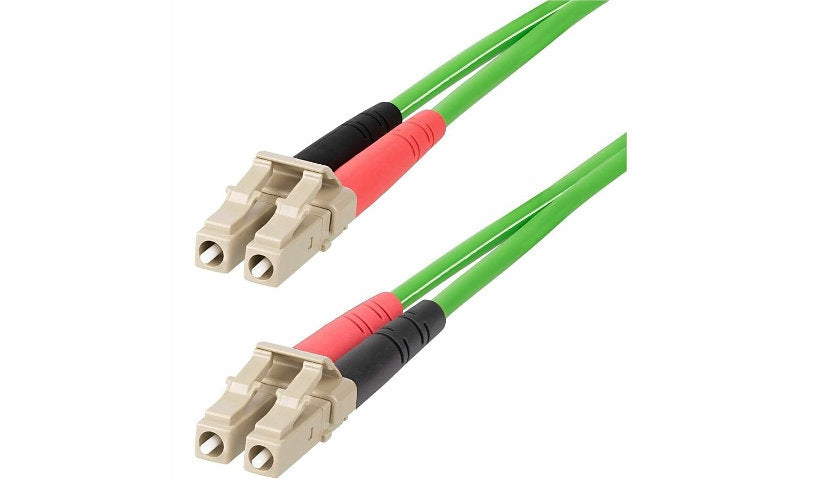

This 1 meter (3.3 ft) StarTech.com OM5 duplex patch cable supports 40G and 100G networks. It handles SWDM (short wavelength division multiplexing) across an extended 850 to 953 nm VCSEL range, which improves signal quality and capacity compared with OM4.
Precision ceramic ferrules keep the fibers aligned for low insertion loss, and the UPC polished LC connectors improve return loss over older PC polishing. The bend insensitive fiber sits in a low smoke zero halogen (LSZH) jacket, and the cable suits switches, servers, SANs and SFP+, QSFP+ and QSFP28 gear.
General
Brand: StarTech.com
Part number: LCLCL-1M-OM5-FIBER
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 1 m (3.3 ft)
Fiber: OM5 wideband multimode, 50/125 µm, bend insensitive
Cable mode: Duplex
Data transfer rate: 100 Gbit/s
Wavelength range: 850 to 953 nm
Jacket: LSZH
Color: Lime green
Features: Bend Insensitive, Bendable, Flame Retardant, UPC Polished Connector, Zip Cord
Connectors
Connectors: LC/UPC (male) to LC/UPC (male)
Compatibility
Supported devices: Network Device, Server, Switch
Compliance and Warranty
Environmentally friendly: Yes
Manufacturer warranty: Lifetime
