Product Information

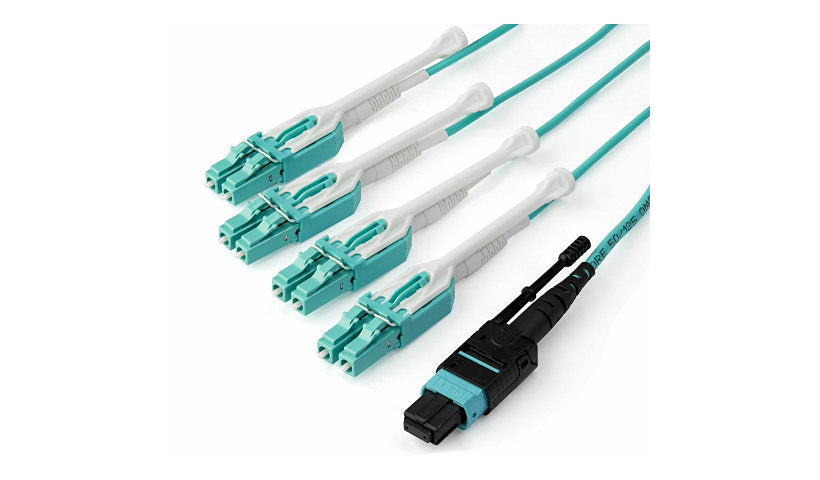

This 3 meter (9.8 ft) StarTech.com breakout cable fans one 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver out to four 10Gbps LC SFP+ transceivers. A female MTP/MPO connector on one end splits into four duplex LC/PC connectors on the other, over OM3 50/125 multimode fiber.
One handed install and removal is easy thanks to push/pull tabs, and slim uniboot LC connectors save space for cleaner cable management. The jacket is plenum rated (OFNP/CMP) for spaces that call for a CMP fire rating. Every cable is tested for insertion loss and return loss, and the test report comes in the bag.
General
Brand: StarTech.com
Part number: MPO8LCPL3M
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 3 m (9.8 ft)
Fiber: OM3 multimode, 50/125 µm
Fiber count: 8
Data transfer rate: 40 Gbit/s
Modal bandwidth: 2000 MHz·km or higher at 850 nm
Jacket: OFNP / CMP plenum rated
Color: Aqua
Features: Push-Pull Tab, Uniboot Connector
Connectors
Connectors: MTP/MPO/PC (female) to 4x duplex LC/PC (male), push/pull tabs, uniboot
Physical and Environmental
Weight: 0.12 lb
Operating temperature: -10°C to 70°C (14°F to 158°F)
Compatibility
Supported devices: Hub, Media Converter, Network Device, Patch Panel, Router, Switch
Compliance and Warranty
Environmentally friendly: Yes
Country of origin: China
Manufacturer warranty: Lifetime
