Product Information

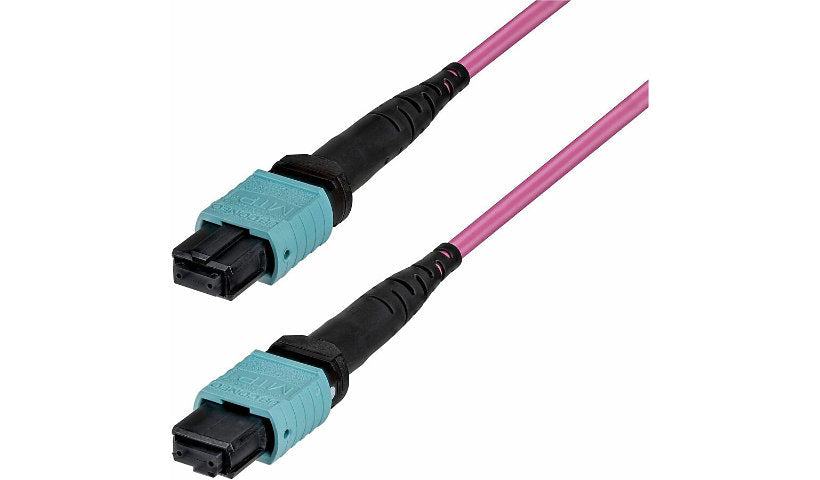

This 5 meter (16.4 ft) StarTech.com OM4 MTP/MPO cable supports high density 40G and 100G links between switches and servers, cutting down cable bulk and simplifying routing across data hall racks. It carries 12 fibers of laser optimized OM4 50/125 µm Corning glass between female MTP Elite connectors with Type-B polarity.
The Erika Violet jacket follows the TIA color standard so OM4 is easy to tell apart from aqua OM3, and it is OFNP plenum rated for compliant runs in air handling spaces. Each cable is individually tested for signal integrity.
General
Brand: StarTech.com
Part number: OM4MTP12BOFNP5M
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 5 m (16.4 ft)
Fiber: OM4 laser optimized multimode, 50/125 µm, Corning glass
Fiber count: 12
Data transfer rate: 100 Gbit/s
Modal bandwidth: 4700 MHz·km or higher at 850 nm
Jacket: OFNP (plenum rated)
Color: Erika Violet
Features: Corning Glass, Laser-optimized
Connectors
Connectors: MTP Elite/PC (female) to MTP Elite/PC (female)
Physical and Environmental
Width: 0.6 inch
Height: 0.3 inch
Weight: 0.11 lb
Compatibility
Supported devices: Fiber Optic Cassette, Network Device, Optical Panel, Rack, Server, Switch, Vertical Cavity Surface Emitting Laser (VCSEL)
Typical use: Backbone, Commercial, Data Center
Compliance and Warranty
Manufacturer warranty: Lifetime
