Product Information

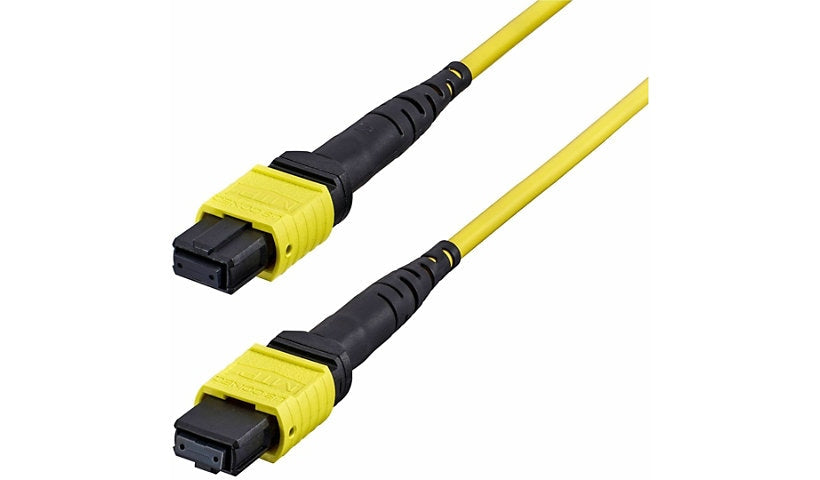

This 3 meter (9.8 ft) StarTech.com OS2 MTP/MPO cable supports high density 40G and 100G links between switches and servers, cutting down cable bulk and simplifying routing across data hall racks. It carries 12 fibers of OS2 9/125 µm Corning glass between female MTP Elite connectors with angled (APC) polish and Type-B polarity, for use at 1310 nm or 1550 nm.
The yellow jacket is OFNP plenum rated for compliant runs in air handling spaces, and each cable is individually tested for signal integrity.
General
Brand: StarTech.com
Part number: OS2MTP12BOFNP3M
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 3 m (9.8 ft)
Fiber: OS2 single mode, 9/125 µm, Corning glass
Fiber count: 12
Data transfer rate: 100 Gbit/s
Jacket: OFNP (plenum rated)
Color: Yellow
Features: Angled Physical Contact (APC), Corning Glass, Laser-optimized
Connectors
Connectors: MTP Elite/APC (female) to MTP Elite/APC (female)
Polish: APC
Physical and Environmental
Width: 0.6 inch
Height: 0.3 inch
Weight: 0.07 lb
Compatibility
Supported devices: Fiber Optic Cassette, Network Device, Optical Panel, Patch Panel, Rack, Server, Switch
Typical use: Backbone, Commercial, Data Center
Compliance and Warranty
Manufacturer warranty: Lifetime
