Product Information

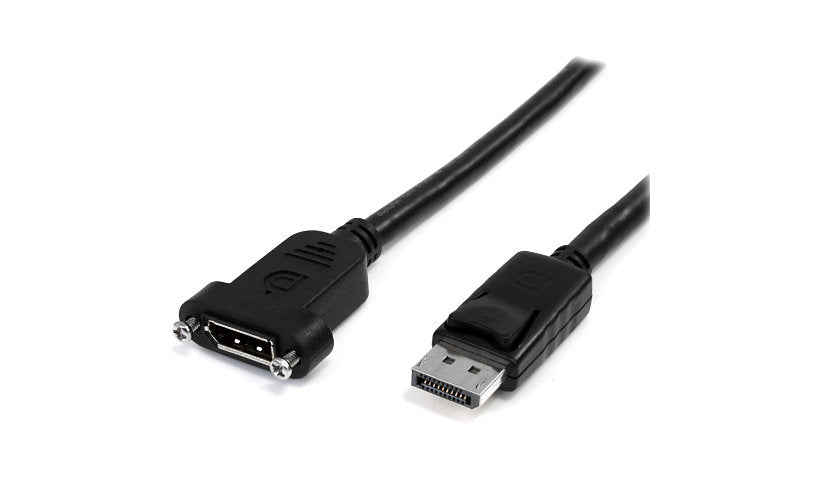

StarTech.com's DPPNLFM3PW is a 3-foot (1 m) DisplayPort extension with one male plug and one panel-mount female socket, giving you a secure, easy-to-reach DP port on a PC case or faceplate. The molded female end has two 4-40 screws for mounting, and all 20 pins are wired so power can pass through when needed.
Key Features:
- DisplayPort male to panel-mount DisplayPort female
- 4K x 2K support; 21.6 Gbps
- Two 4-40 mounting screws on female end
- All 20 pins wired (power pass-through)
- Latching connector; ABS shells with PVC strain relief
- 28 AWG copper; gold-plated contacts
- Length: 3 ft (1 m)
Specifications:
- Brand: StarTech.com
- Manufacturer Part Number: DPPNLFM3PW
- Connector A: 20 pin DisplayPort (male)
- Connector B: 20 pin DisplayPort (1.2) (female)
- Cable Length: 3 ft
- Max Bandwidth: 21.6 Gbps
- Environmental Compliance: EU RoHS
- Wire Gauge: 28 AWG
- Conductor Material: Copper
- Contact Plating: Gold
- Shielded: Yes
- Compatible Device Types: Audio/Video Device, Faceplate, PC
- Country of Origin: China
- Feature Set: Damage Resistant, EMI Protection, Flexible, Fray Resistant, Latching Connector, Molded, Strain Relief
- Product Category: Video Cable
- Weight: 0.22 lb
- Warranty: Limited lifetime warranty
