Product Information

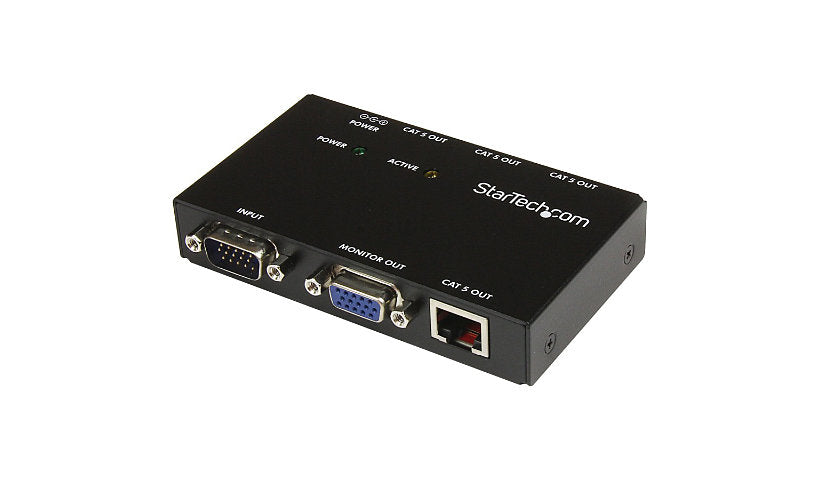

The ST1214T 4-port VGA over Cat5 transmitter broadcasts one VGA source to up to four remote displays up to 500 ft (150 m) away, for digital signage and video conferencing. This listing is the transmitter unit only, for use with ST121 series receivers. Add an ST121EXT repeater to extend another 500 ft (150 m), for 1000 ft (300 m) in total. It supports resolutions up to 1600 x 1200 and is TAA compliant.
Key Features
- 4-port VGA over Cat5 transmitter
- Up to 500 ft (150 m) per run
- Up to 1600 x 1200
- For ST121 series receivers
- TAA compliant
Product Information
Brand: StarTech.com
Manufacturer: StarTech.com
Model: ST1214T
Product Type: Video Extender Transmitter
Form Factor: Desktop
Technical Information
Maximum Video Resolution: 1600 x 1200
Input Voltage: 9 V DC
Dimensions and Weight
Color: Black
Included Item
Included Quantity: 1-Each
Additional Information
Max Transfer Distance: 492.13 ft
Connectivity Technology: Wired
Network (RJ-45): Yes
Network (RJ-45) Ports: 4
VGA In: Yes
VGA Inputs: 1
VGA Out: Yes
VGA Outputs: 1
Twisted Pair Cable Standard: Category 5
Input Devices Supported: 1
Transmitter Depth: 4.10 inch
Transmitter Height: 0.80 inch
Transmitter Weight: 7.09 ounce
Transmitter Width: 2.50 inch
Certifications and Listing
Environmentally Friendly: Yes
TAA Compliant: Yes
Country of Origin: Taiwan
