Product Information

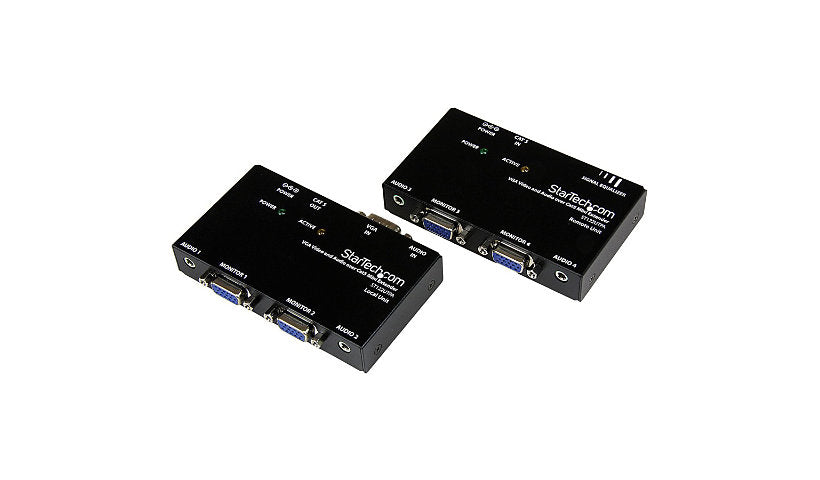

The ST122UTPA VGA video extender with audio connects up to four monitors (two local and two remote) to one PC, sending video and audio to the remote unit over standard Cat5 or better UTP cable (Cat5e recommended) up to 150 m (500 ft). The kit includes a local transmitter and remote receiver for a complete point-to-point solution, ideal for digital signage that needs audio. Supported resolutions are 1024 x 768 at 500 ft, 1280 x 1024 at 300 ft and 1440 x 900 at 150 ft. A mounting bracket for the receiver allows wall, desk or cabinet installation. It is TAA compliant and backed by a 2-year warranty.
Key Features
- VGA + audio over Cat5 extender kit
- Up to 500 ft (150 m)
- 2 local + 2 remote outputs
- Mounting bracket included
- TAA compliant
- 2 year limited warranty
Product Information
Brand: StarTech.com
Manufacturer: StarTech.com
Model: ST122UTPA
Product Type: Video Extender Transmitter/Receiver
Form Factor: Desktop
Technical Information
Maximum Video Resolution: 1440 x 900
Dimensions and Weight
Color: Black
Included Item
Included Quantity: 1 Kit
Additional Information
Max Transfer Distance: 150 ft
Connectivity Technology: Wired
Network (RJ-45): Yes
Network (RJ-45) Ports: 2
VGA In: Yes
VGA Inputs: 2
VGA Out: Yes
VGA Outputs: 2
Twisted Pair Cable Standard: Category 5
Input Devices Supported: 1
Output Devices Supported: 4
Transmitter Depth: 2.40 inch
Transmitter Height: 0.80 inch
Transmitter Weight: 6.40 ounce
Transmitter Width: 3.30 inch
Certifications and Listing
Environmentally Friendly: Yes
TAA Compliant: Yes
Country of Origin: Taiwan
Warranty
Limited Warranty: 2 Year
