Product Information

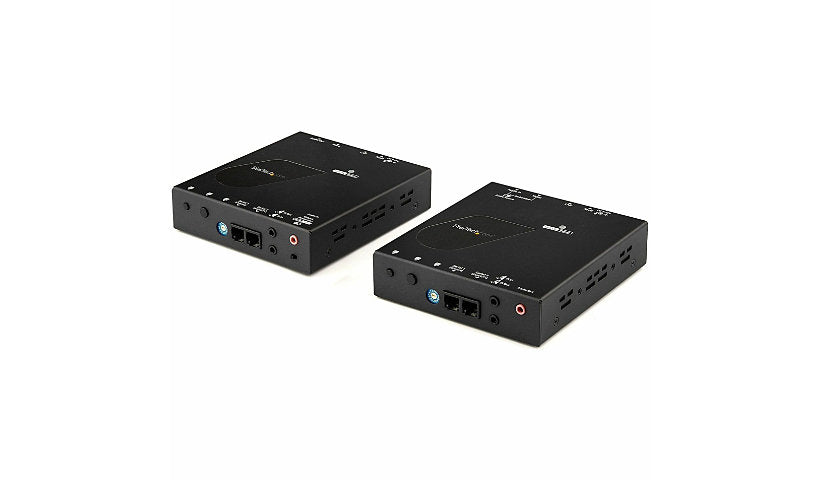

This HDMI over IP extender kit sends video to a remote location over your LAN and Cat5e or Cat6 cabling. Add more receivers and an Ethernet switch (sold separately) to distribute one source to many locations or build video walls, or use several transmitters to share different sources. You can also connect the transmitter directly to a receiver up to 330 ft (100 m) point to point. It supports 1080p (1920 x 1080 at 60Hz), digital and analog audio, and RS-232 extension for serial device control. Manage everything with the free iOS/Android app. Your router must support and enable IGMP snooping. Shelf-mounting hardware is included, and the kit is backed by a 2-year StarTech.com warranty.
Key Features
- HDMI over IP extender kit
- 1080p up to 330 ft (100 m) point to point
- Video wall and multipoint support
- Mobile control app, RS-232
- TAA compliant
- 2 year limited warranty
Product Information
Brand: StarTech.com
Manufacturer: StarTech.com
Model: ST12MHDLAN2K
Product Type: Video Extender Transmitter/Receiver
Form Factor: Rack-mountable
Connectivity
HDMI Inputs: 1
HDMI Outputs: 1
HDMI Out: Yes
Technical Information
Maximum Video Resolution: 1920 x 1080
Dimensions and Weight
Color: Black
Included Item
Included Quantity: 1 Kit
Additional Information
Max Transfer Distance: 328.08 ft
Connectivity Technology: Wired
Network (RJ-45): Yes
Network (RJ-45) Ports: 2
Twisted Pair Cable Standard: Category 6
Input Devices Supported: 1
Output Devices Supported: 1
Receiver Depth: 5.20 inch
Receiver Height: 1.20 inch
Receiver Weight: 2.60 ounce
Receiver Width: 4.60 inch
Transmitter Depth: 5.20 inch
Transmitter Height: 1.20 inch
Transmitter Weight: 2.60 ounce
Transmitter Width: 4.60 inch
Certifications and Listing
Environmentally Friendly: Yes
TAA Compliant: Yes
Country of Origin: Taiwan
Warranty
Limited Warranty: 2 Year
