Product Information

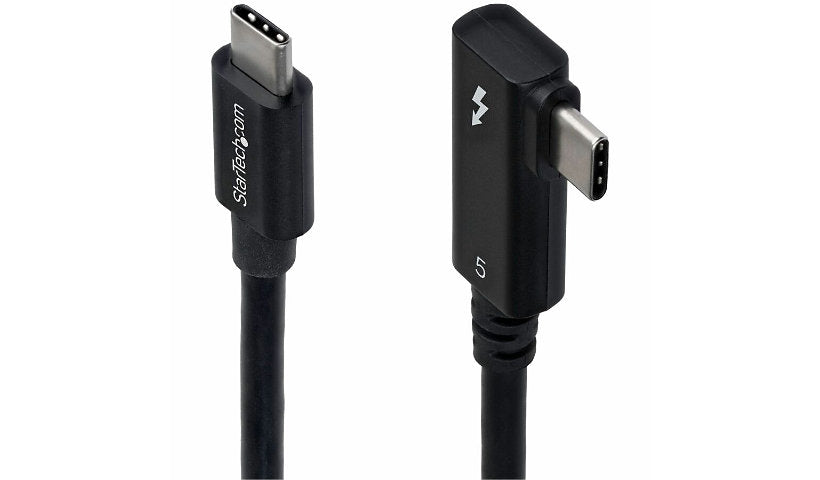

This 80 cm Thunderbolt 5 cable has a right-angle connector that keeps cables tidy and reduces strain on ports, ideal for high-performance laptops such as the 16 in MacBook Pro with M4 Pro/Max. Shielded 30/34 AWG coaxial wire protects against EMI, and PCIe 4.0 (64 Gbps) is supported for GPUs, NICs and storage. Thunderbolt 5 offers 80 Gbps bidirectional bandwidth, and Boost Mode reallocates the lanes to provide 120 Gbps in one direction and 40 Gbps in the other for display-heavy work such as multiple 8K monitors. It delivers 8K 60Hz video and up to 240W charging through one connection. The cable is Intel Thunderbolt certified and backward compatible with Thunderbolt 4/3 and USB4. Backed by a lifetime warranty.
Key Features
- 2.6 ft (80 cm) right-angle Thunderbolt 5 cable
- 80 Gbps, up to 120 Gbps with Boost
- 8K 60Hz video, 240W charging
- PCIe 4.0 (64 Gbps)
- Intel Thunderbolt certified
- Lifetime warranty
Product Information
Brand: StarTech.com
Manufacturer: StarTech.com
Model: TBLT5MM80CM240WRA
Product Type: AV/Data Transfer Cable
Cable Type: Thunderbolt 5
Compatible Devices: Audio/Video Device, Chassis, Display, External GPU, MacBook Pro, Monitor, Notebook
Compatibility: Apple - MacBook Pro M4
Connectivity
Connector A Gender: Male
Connector B Gender: Male
Connector Plating: Nickel
Technical Information
Wire Gauge (AWG): 30/34 AWG
Shielding: Yes
Jacket: Halogen-free
Supported Resolution: 7680 x 4320
Data Transfer Rate: 120 Gbit/s
Features: Braided, Display Stream Compression (DSC), DisplayPort Alternate (ALT) Mode, Durable, EMI Protection, Flexible, Halogen-free, HDR Support, Interference Protection, Passive, Right-angled Connector, USB- Power Delivery (USB PD)
Dimensions and Weight
Cable Length: 2.62 ft
Width: 0.6 inch
Height: 0.3 inch
Weight: 0.08 lb
Color: Black
Included Item
Included Quantity: 1
Warranty
Limited Warranty: Lifetime
