Product Information

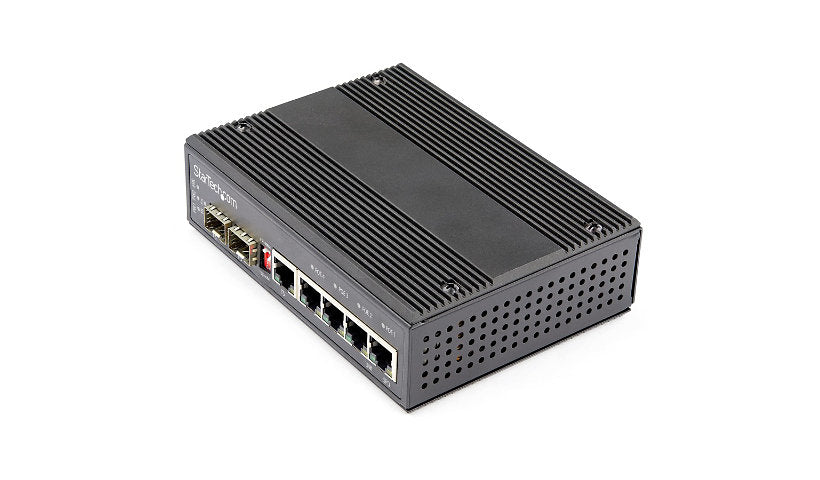

The StarTech.com IES1G52UP12V is an unmanaged industrial switch with four Gigabit PoE+ ports, one SFP slot and one combo port that can be used as RJ-45 or SFP. Each PoE+ port supplies up to 30 W from a 120 W total. It runs on 12-56 V DC with redundant inputs, has an IP30 housing rated for -40 to 75 C and mounts on a DIN rail or wall. TAA compliant.
Key Features
- 4 x Gigabit PoE+ RJ-45 ports, up to 30 W each
- 1 x SFP slot and 1 x RJ-45/SFP combo port
- 120 W total PoE power
- 12-56 V DC, redundant power inputs
- IP30 housing, -40 to 75 C
- DIN rail or wall mount
- TAA compliant
Product Information
Brand: StarTech.com
Manufacturer: StarTech.com
Product Type: Ethernet Switch
Included Quantity: 1-Each
Country of Origin: Taiwan
Network and Communication
Data Link Protocols: Gigabit Ethernet
Network Technology: 1000Base-T, 1000Base-X
Layer Supported: 2
Manageable: No
Connectivity
Expansion Slot Type: SFP (mini-GBIC)
Expansion Slot Details: 1 x Gigabit Ethernet Expansion Slot, 1 x Gigabit Ethernet TP/SFP Combo, 4 x Gigabit Ethernet PoE+
Network (RJ-45): Yes
PoE (RJ-45) Port: Yes
SFP Slots: 2
Shared SFP Slot: Yes
Uplink Port: Yes
Power
Plug Type: Terminal Block
PoE Budget: 120 watt
Physical Characteristics
Form Factor: DIN Rail Mountable, Wall Mountable
Dimensions and Weight
Height: 1.7 inch
Width: 4.1 inch
Length: 5.6 inch
Weight: 1.55 lb
Certifications and Listing
Environmentally Friendly: Yes
Warranty
Limited Warranty: 2 Year
