Product Information

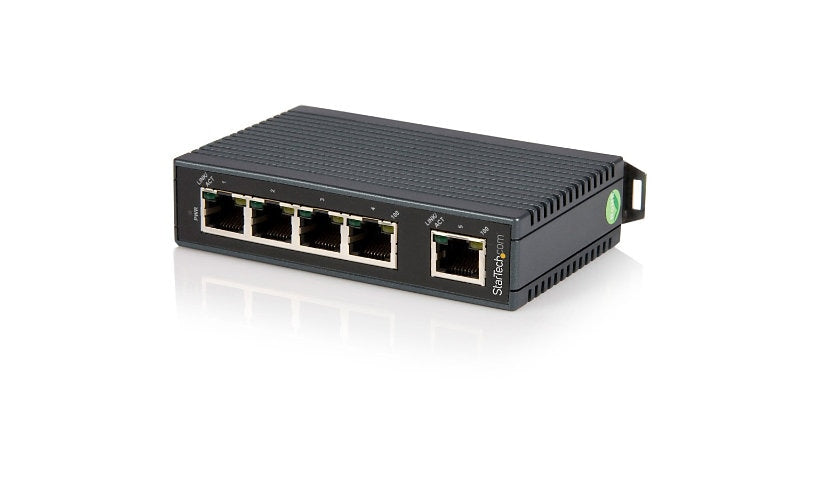

StarTech's IES5102 is a hardened unmanaged switch with five 10/100 Mbps ports for factory and field networks. It has an IP30 housing, mounts on a DIN rail and takes 12 to 48 V DC through a terminal block. It is TAA compliant.
Key Features
- 5 x 10/100 Mbps RJ-45 ports
- Industrial unmanaged switch
- IP30 rated housing
- DIN rail mount
- 12-48V DC terminal block input
- TAA compliant
Product Information
Brand: StarTech.com
Manufacturer: StarTech.com
Product Type: Ethernet Switch
Included Quantity: 1-Each
Color Category: Black
Color Family: Black
Country of Origin: Taiwan
Network and Communication
Data Link Protocols: Fast Ethernet
Network Technology: 10/100Base-TX
Layer Supported: 2
Manageable: No
Bypass: No
Connectivity
Expansion Slot Details: 5 x Fast Ethernet Network
Network (RJ-45): Yes
Network (RJ-45) Ports: 5
PoE (RJ-45) Port: No
Stack Port: No
Management Port: No
USB: No
LRE Port: No
Token Ring Port: No
Power
Power Consumption: 2.12 watt
Technical Information
MTBF: 1179133 hour
Physical Characteristics
Form Factor: Rail-mountable
Dimensions and Weight
Height: 4.3 inch
Width: 1 inch
Length: 2.8 inch
Weight: 5.30 ounce
Certifications and Listing
TAA Compliant: Yes
Environmentally Friendly: Yes
Warranty
Limited Warranty: 2 Year
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
