Product Information

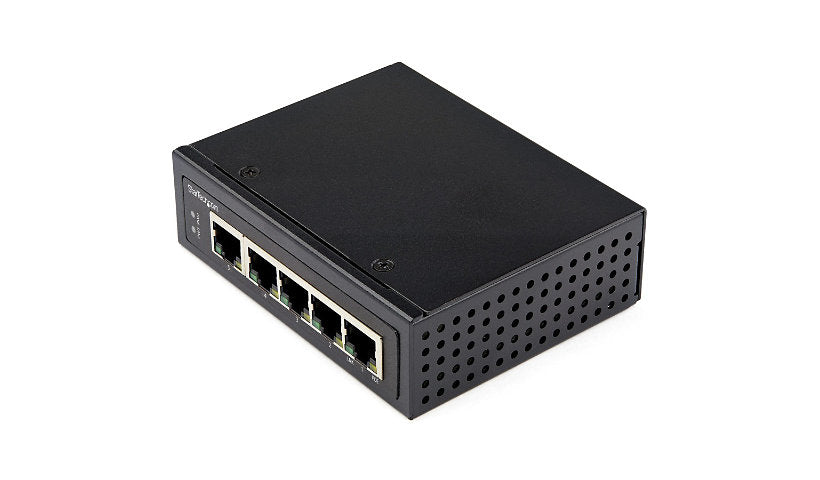

StarTech's IESC1G50UP is a hardened unmanaged switch with four Gigabit PoE+ ports at up to 30 W each and one Gigabit port. It is IP30 rated, works from -40 to 75 °C and mounts on a DIN rail or wall. The spec sheet shows a 120 W budget, while one quick spec line says 200 W, so please confirm. This is a PoE switch, not an injector.
Key Features
- 4 x Gigabit PoE+ ports + 1 x Gigabit port
- Up to 30 W per port
- PoE budget 120 W (see note)
- IP30, -40 to 75 °C
- DIN rail or wall mount
- TAA compliant
Product Information
Brand: StarTech.com
Manufacturer: StarTech.com
Product Type: Ethernet Switch
Included Quantity: 1-Each
Country of Origin: Taiwan
Network and Communication
Data Link Protocols: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Layer Supported: 2
Manageable: No
Connectivity
Expansion Slot Details: 1 x Gigabit Ethernet Network, 4 x Gigabit Ethernet PoE+
Network (RJ-45): Yes
PoE (RJ-45) Port: Yes
Power
Power Source: PoE+
Plug Type: Terminal Block
Power Consumption: 126 watt
PoE Budget: 120 watt
Physical Characteristics
Form Factor: DIN Rail Mountable, Wall Mountable
Dimensions and Weight
Height: 1.3 inch
Width: 3.2 inch
Length: 4.1 inch
Weight: 5.30 ounce
Certifications and Listing
Environmentally Friendly: Yes
Warranty
Limited Warranty: 2 Year
