Product Information

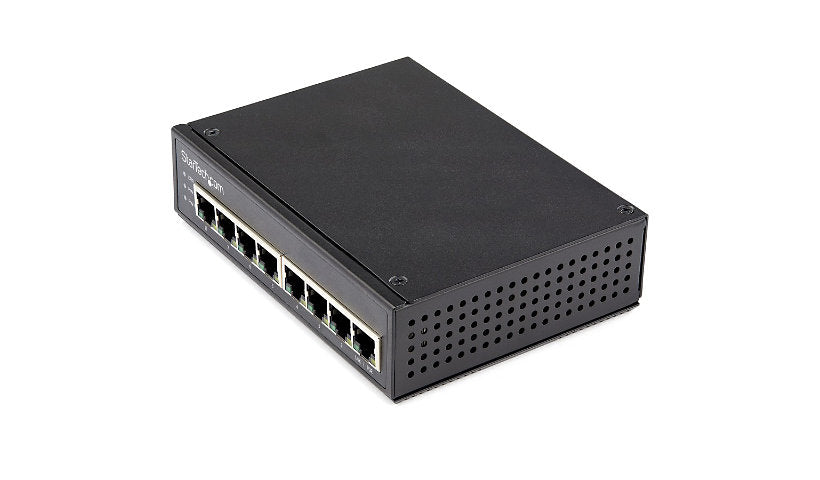

StarTech's IESC1G80UP is a hardened unmanaged switch with eight Gigabit PoE+ ports at up to 30 W each and a 200 W total budget. It is IP30 rated, works from -40 to 75 °C, has 2 kV surge protection on its ports and includes DIN rail and wall mounting hardware. This is a PoE switch, not an injector.
Key Features
- 8 x Gigabit PoE+ ports, 30 W each
- 200 W PoE budget
- IP30, -40 to 75 °C
- 2 kV port surge protection
- DIN rail and wall mount hardware
- TAA compliant
Product Information
Brand: StarTech.com
Manufacturer: StarTech.com
Product Type: Ethernet Switch
Included Quantity: 1-Each
Country of Origin: Taiwan
Network and Communication
Data Link Protocols: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Layer Supported: 2
Manageable: No
Connectivity
Expansion Slot Details: 8 x Gigabit Ethernet PoE+
Network (RJ-45): Yes
PoE (RJ-45) Port: Yes
Power
Power Source: PoE+
Plug Type: Terminal Block
Power Consumption: 206 watt
PoE Budget: 200 watt
Physical Characteristics
Form Factor: DIN Rail Mountable, Wall Mountable
Dimensions and Weight
Height: 1.6 inch
Width: 4.1 inch
Length: 5.6 inch
Weight: 1.18 lb
Certifications and Listing
Environmentally Friendly: Yes
Warranty
Limited Warranty: 2 Year
