Product Information

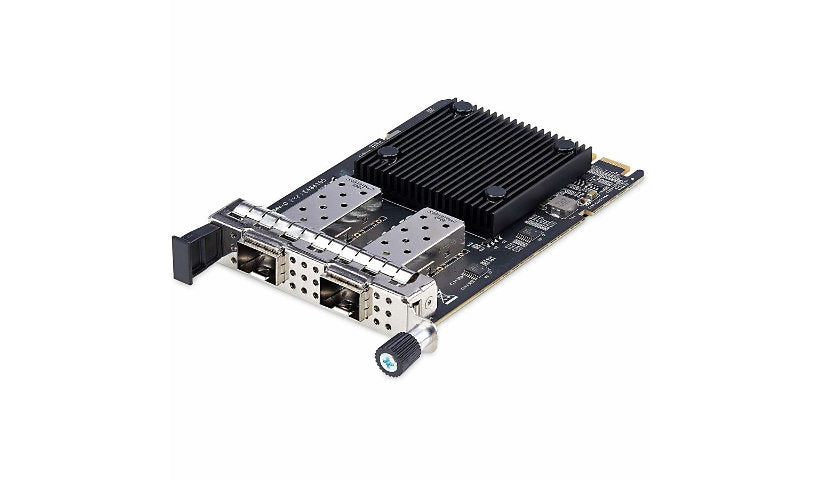

The StarTech O1210I-NETWORK-CARD is an OCP 3.0 server card (SFF 4C+ connector) with two open SFP+ slots, built on the Intel X710-BM2 controller. It accepts single mode or multimode SFP+ optics (MSA or brand coded), AOC and DAC cables, supporting 10GBase-SR, LR, CR and T as well as 1000Base-T, SX and LX. It works with PCIe 3.0 and earlier generations and supports PXE boot.
Key Features
- 2 x open SFP+ slots
- Intel X710-BM2
- OCP 3.0 SFF 4C+
- 1G and 10G modules
- Optics, AOC or DAC
- PXE boot support
Product Information
Brand: StarTech.com
Manufacturer: StarTech.com
Product Type: 10Gigabit Ethernet Card
Usage: Network
Included Quantity: 1
Color Category: Black
Color Family: Black
Network and Communication
Network Technology: 1000Base-LX, 1000Base-SX, 1000Base-T, 10GBase-CR, 10GBase-LR, 10GBase-SR, 10GBase-T, 10GBase-X
Max Data Transfer Rate: 10 Gbit/s
Fiber Mode Supported: Multi-mode, Single-mode
Features: PXE Support
Connectivity
Expansion Slot Type: SFP+
Host Interface: PCI Express 3.0
Memory and Processor
Chipset Manufacturer: Intel
Chipset Model: X710-BM2
Physical Characteristics
Form Factor: Plug-in Card
Supported Devices: Server
Dimensions and Weight
Height: 0.6 inch
Width: 3.3 inch
Depth: 5.2 inch
Weight: 3.70 ounce
Warranty
Limited Warranty: 2 Year
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
