Product Information

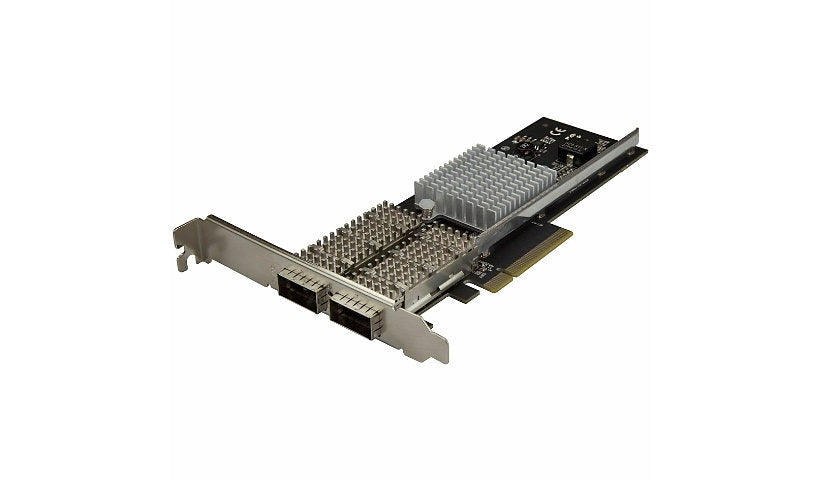

The StarTech PEX40GQSFDPI adds two open QSFP+ slots to a server or workstation on a PCI Express x8 interface, built on the Intel XL710-BM2 controller and verified with Spirent SmartBits. It handles up to 40 Gbps per port with redundant links for database and virtualized servers, works with 40GBase-SR4 or LR4 modules of your choice (not included), and supports Windows 7 to 10, Windows Server 2008 R2 to 2019 and Linux.
Key Features
- 2 x open QSFP+ slots
- Intel XL710-BM2
- PCI Express x8
- Up to 40 Gbps per port
- Redundant link support
- Windows and Linux
Product Information
Brand: StarTech.com
Manufacturer: StarTech.com
Product Type: 40Gigabit Ethernet Card
Included Quantity: 1-Each
Color Category: Black
Color Family: Black
Country of Origin: China
Network and Communication
Network Technology: 40GBASE-LR4, 40GBase-SR4
Connectivity
Ports: 2
Expansion Slot Type: QSFP+
Host Interface: PCI Express x8
Memory and Processor
Chipset Manufacturer: Intel
Chipset Model: XL710-BM2
Physical Characteristics
Form Factor: Plug-in Card
Supported Devices: Server, Workstation
Dimensions and Weight
Height: 0.8 inch
Width: 4.8 inch
Depth: 7.1 inch
Weight: 4.50 ounce
Certifications and Listing
Environmentally Friendly: Yes
Warranty
Limited Warranty: 2 Year
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
