Product Information

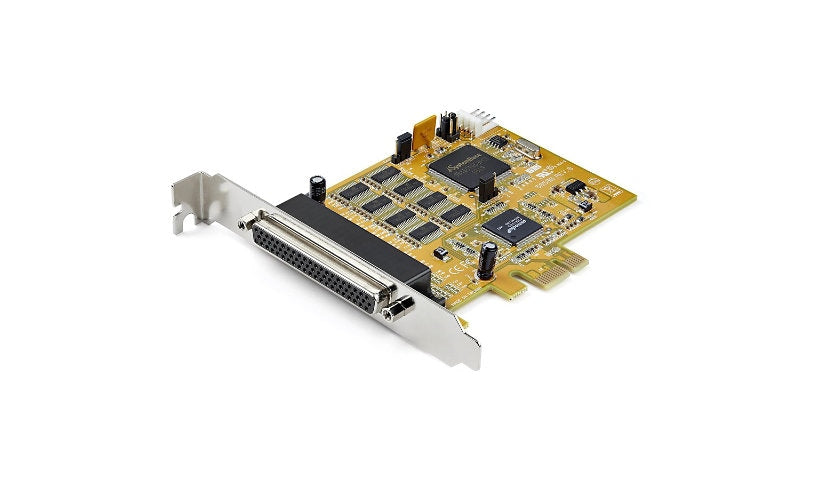

The StarTech PEX8S1050 gives a desktop PC eight DB9 RS-232 serial ports from one PCI Express x1 slot, through an 18 inch DB62 to 8 x DB9 breakout cable. It uses a 16C1050 UART with a 256 byte FIFO, runs at up to 921.6 Kbps per port and has 15 kV ESD protection. It connects printers, scanners, card readers, PIN pads, modems and industrial controls, and is TAA compliant. The title says Windows only while the spec also lists Linux, so please confirm your operating system.
Key Features
- 8 x RS-232 DB9 ports
- DB62 breakout cable
- 16C1050 UART, 256 byte FIFO
- Up to 921.6 Kbps per port
- 15 kV ESD protection
- TAA compliant
Product Information
Platform Supported: Linux, PC
Brand: StarTech.com
Manufacturer: StarTech.com
Product Type: Multiport Serial Adapter
Included Quantity: 1-Each
Color Category: Yellow
Color Family: Yellow
Country of Origin: Taiwan
Network and Communication
Data Link Protocols: 8 x DB-9 RS-232 - Serial, Via Cable
Max Data Transfer Rate: 921.40 Kbps
Connectivity
Serial Ports: 1
UART Type: 16C1050
Host Interface: PCI Express 1.0a x1
Physical Characteristics
Form Factor: Plug-in Card
Dimensions and Weight
Height: 4.7 inch
Width: 0.6 inch
Weight: 2.60 ounce
Certifications and Listing
Environmentally Friendly: Yes
Warranty
Limited Warranty: Lifetime
Not sure this serial adapter fits your setup? Send us your computer, port type and the device you need to connect, and the DatorPro team will confirm compatibility before you order.
