Product Information

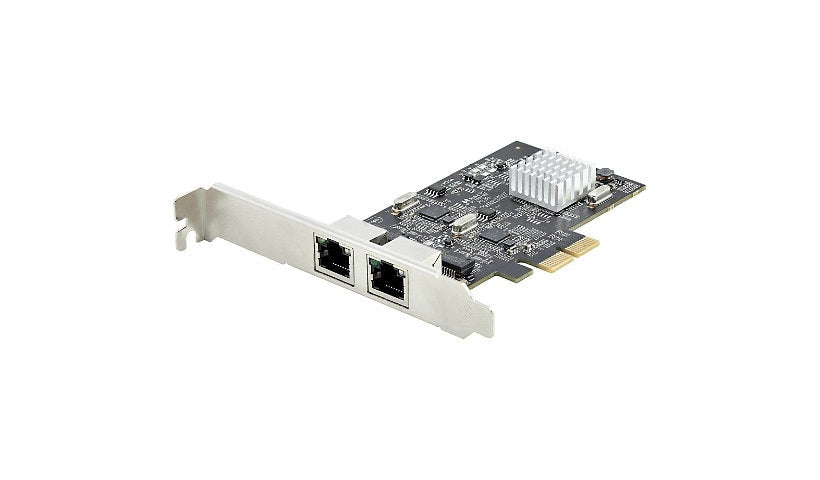

The StarTech PR22GI-NETWORK-CARD is a dual port 2.5 Gigabit network card on a PCIe 2.0 x2 interface, with a separate Intel I225-V chip for each port. Each RJ-45 port runs at 2.5G, 1G, 100M or 10M over existing Cat5e or Cat6 cable, with NBASE-T (802.3bz) support, LED indicators and LAN transformers to reduce EMI. It has a low profile bracket.
Key Features
- 2 x 2.5GbE RJ-45 ports
- One Intel I225-V per port
- PCIe 2.0 x2
- NBASE-T (802.3bz)
- Works over Cat5e
- Low profile bracket
Product Information
Brand: StarTech.com
Manufacturer: StarTech.com
Product Type: 2.5Gigabit Ethernet Adapter
Usage: Network
Included Quantity: 1
Network and Communication
Network Technology: 2.5GBase-T
Connectivity
Ports: 2
Host Interface: PCI Express 2.0 x2
Network (RJ-45) Ports: 2
Memory and Processor
Chipset Manufacturer: Intel
Chipset Model: I225-V
Physical Characteristics
Bracket Height: Low Profile
Form Factor: Plug-in Card
Supported Devices: Server
Certifications and Listing
Environmentally Friendly: Yes
Warranty
Limited Warranty: 2 Year
