Product Information

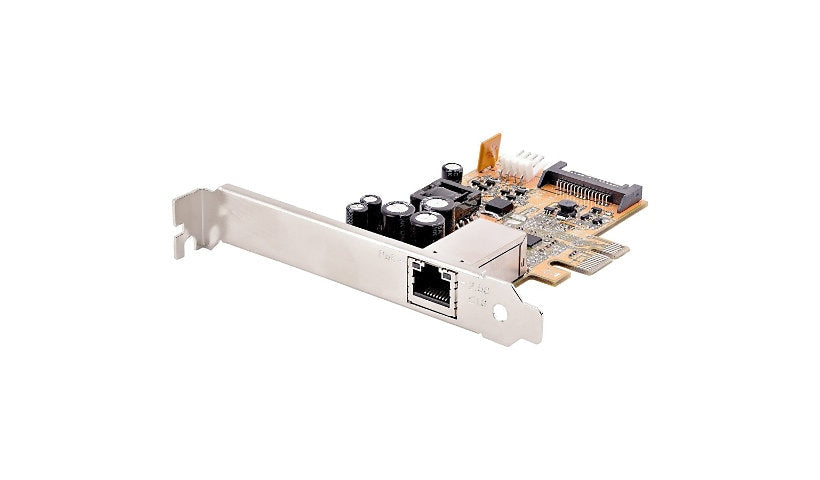

The StarTech ST1000PEXPSE adds one 2.5 Gigabit RJ-45 port with PoE+ to a computer or server through a PCIe 2.1 x1 slot, built on the Realtek RTL8125B. It acts as IEEE 802.3af/at power sourcing equipment, delivering up to 25.5 W at 48 V DC to the connected device (30 W PSE), so a remote device gets power and data on one Cat5e or better cable. It runs at 2.5G, 1G, 100M or 10M, supports Wake on LAN, has a low profile bracket and is TAA compliant.
Key Features
- 1 x 2.5GbE PoE+ RJ-45 port
- Up to 25.5 W to device
- IEEE 802.3af/at PSE
- Realtek RTL8125B
- PCIe 2.1 x1
- TAA compliant
Product Information
Brand: StarTech.com
Manufacturer: StarTech.com
Product Type: Gigabit Ethernet Card
Included Quantity: 1
Country of Origin: Taiwan
Network and Communication
Network Technology: 2.5GBase-T
Max Data Transfer Rate: 2.44 Gbit/s
Connectivity
Ports: 1
Host Interface: PCI Express 2.1 x1
Network (RJ-45) Ports: 1
Memory and Processor
Chipset Manufacturer: Realtek
Chipset Model: RTL8125B
Physical Characteristics
Bracket Height: Low Profile
Form Factor: Plug-in Card
Supported Devices: Computer, Server
Dimensions and Weight
Height: 0.6 inch
Width: 2.5 inch
Weight: 7.80 ounce
Certifications and Listing
Environmentally Friendly: Yes
Warranty
Limited Warranty: 2 Year
