Product Information

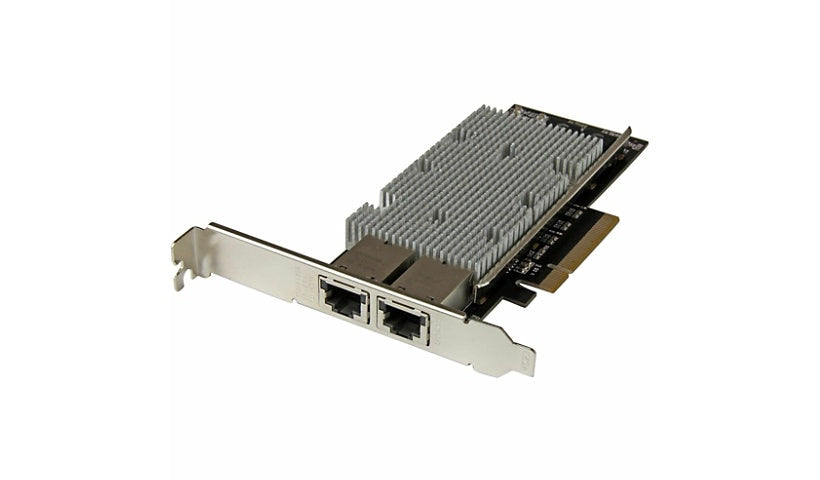

The StarTech ST20000SPEXI adds two 10GBase-T RJ-45 ports to a workstation or server from one PCI Express slot, built on the Intel X540 chipset. Each port runs at 100M, 1G or 10G with up to 20 Gbps full duplex bandwidth, giving a cost effective upgrade to 10 GbE across a wide range of operating systems.
Key Features
- 2 x 10GBase-T RJ-45 ports
- Intel X540 chipset
- PCI Express x4
- 100M, 1G and 10G
- Up to 20 Gbps full duplex
- For servers, workstations
Product Information
Brand: StarTech.com
Manufacturer: StarTech.com
Product Type: 10Gigabit Ethernet Card
Included Quantity: 1-Each
Color Category: Black
Color Family: Black
Country of Origin: China
Network and Communication
Network Technology: 10GBase-T
Max Data Transfer Rate: 20 Gbit/s
Connectivity
Ports: 2
Host Interface: PCI Express x4
Network (RJ-45) Ports: 2
Memory and Processor
Chipset Manufacturer: Intel
Chipset Model: X540
Physical Characteristics
Form Factor: Plug-in Card
Supported Devices: Server
Dimensions and Weight
Height: 4.7 inch
Width: 0.8 inch
Depth: 6.4 inch
Weight: 5.50 ounce
Certifications and Listing
Environmentally Friendly: Yes
