Product Information

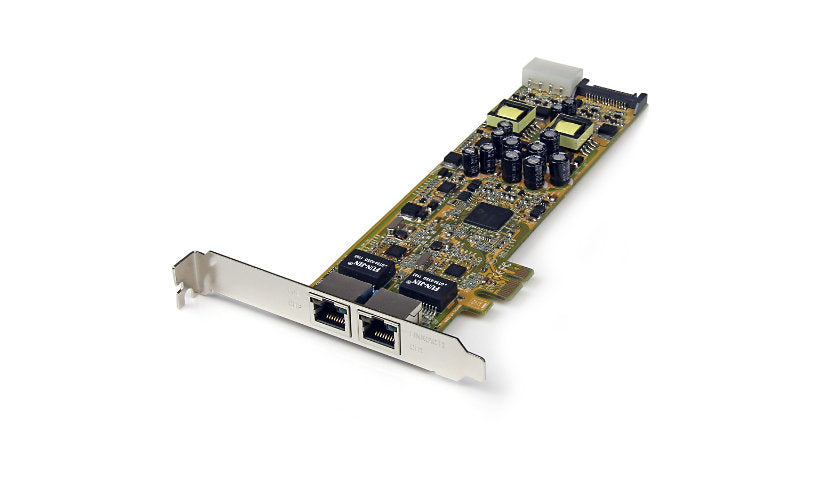

The StarTech ST2000PEXPSE adds two 10/100/1000 Mbps RJ-45 ports with Power over Ethernet to a PCI Express computer, working as 802.3at power sourcing equipment (PSE). Each port delivers up to 25.5 W at 48 V DC, so devices such as IP cameras, VoIP phones and Wi-Fi access points get data and power on one cable. It uses the Realtek RTL8111E chipset and suits full height and low profile installs.
Key Features
- 2 x Gigabit PoE+ RJ-45 ports
- Up to 25.5 W per port
- IEEE 802.3at PSE
- Realtek RTL8111E
- Powers cameras and APs
- PCI Express card
Product Information
Brand: StarTech.com
Manufacturer: StarTech.com
Product Type: Gigabit Ethernet Card
Included Quantity: 1-Each
Country of Origin: Taiwan
Network and Communication
Ethernet AUI: No
InfiniBand: No
Serial Port: No
XJACK: No
Network Technology: 10/100/1000Base-T
Connectivity
Ports: 2
Host Interface: PCI Express
Network (RJ-45): Yes
Network (RJ-45) Ports: 2
PoE (RJ-45) Port: Yes
USB: No
Memory and Processor
Chipset Manufacturer: Realtek
Chipset Model: RTL8111E
Physical Characteristics
Item Thickness: 700 milli-inch
Card Height: Full-height
Form Factor: Plug-in Card
Supported Devices: PC
Dimensions and Weight
Height: 2.7 inch
Width: 0.7 inch
Weight: 3.70 ounce
Certifications and Listing
Environmentally Friendly: Yes
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
