Product Information

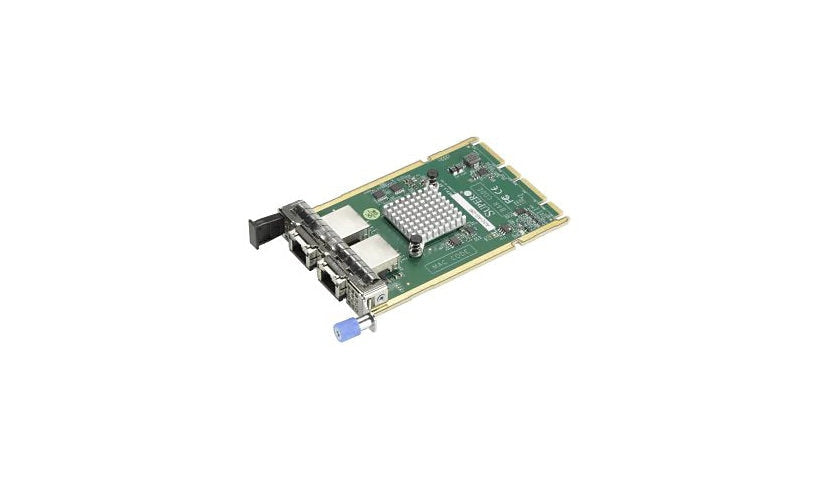

The Supermicro AOC-AG-i2M is a dual port Gigabit Ethernet card in Supermicro's Advanced I/O Module (AIOM) form factor, built on the Intel I350 controller. Its two RJ-45 ports support SR-IOV, NC-SI, iSCSI and PXE boot, RSS, TSO, jumbo frames and Energy Efficient Ethernet, drawing about 3.7 W. It ships with a swappable bracket for 0.5U chassis and works with Windows Server, Red Hat, SUSE, FreeBSD and VMware ESX.
Key Features
- 2 x 1GbE RJ-45 ports
- Intel I350 controller
- Supermicro AIOM form factor
- SR-IOV and NC-SI
- iSCSI and PXE boot
- About 3.7 W power draw
Product Information
Brand: Supermicro
Manufacturer: Super Micro Computer Inc
Product Line: Supermicro
Model: AOC-AG-i2M
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Black, Green, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Network Standard: iSCSI, TCP/IP, UDP/IP
Data Transfer Rate: 1 GBps
Operating System Required: FreeBSD, Microsoft Windows Server, Red Hat Linux, SuSe Linux, VMware ESX
Features: Active State Power Management (ASPM) support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Checksum offload support, DMA Coalescing (DMAC), Energy-Efficient Ethernet (EEE), Flow control, IPv4 support, IPv6 support, iSCSI boot, Jumbo Frames support, Network Controller Sideband Interface (NC-SI), PXE support, Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), VLAN support
Connectivity
Port Quantity: 2
Interface Provided: 2 x 1000Base-T - RJ-45
Network & Adapter Ports: Gigabit Ethernet
Host Interface: Advanced I/O Module (AIOM)
Power
Power Consumption Operational: 3.7 watt
Memory and Processor
Processor Brand: Intel
Processor Number: I350
Processors Installed: 1
Physical Characteristics
Form Factor: Plug-In Card
Dimensions and Weight
Width: 3 inch
Depth: 4.5 inch
Included Items
Included Accessories: Swappable bracket for 0.5U chassis
Certifications and Listing
Compliant Standards #2: RoHS 6/6
Compliant Standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: RoHS 6/6
Warranty
Service Activation: No
