Product Information

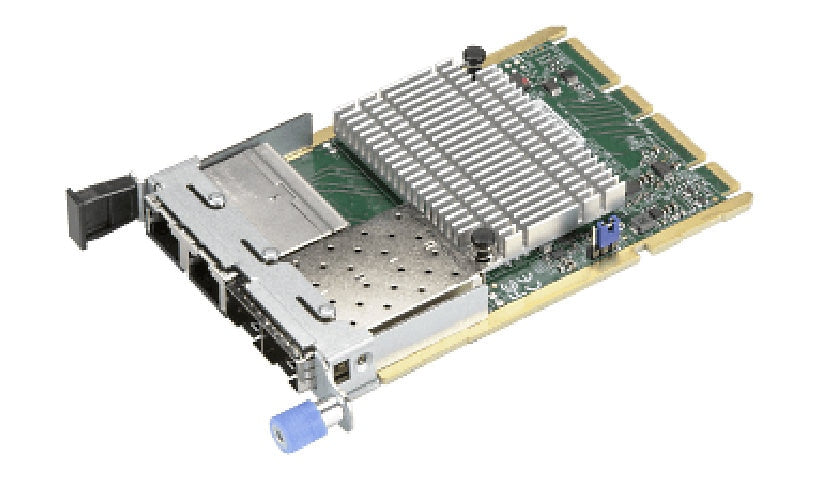

The Supermicro AOC-ATG-i2T2SM is a four port 10 Gigabit card in Supermicro's Advanced I/O Module (AIOM) form factor, with two 10GBase-T RJ-45 ports and two SFP+ cages. It is built on the Intel X710-TM4 controller and supports DPDK, Intel Flow Director, NVGRE and GENEVE offloads, NC-SI, iSCSI and PXE boot, Energy Efficient Ethernet and 9.5 KB jumbo frames. It draws about 10 W and works with Windows, Linux, FreeBSD and VMware ESX. This is the retail packaged version.
Key Features
- 2 x 10G RJ-45 + 2 x SFP+
- Intel X710-TM4 controller
- Supermicro AIOM form factor
- DPDK and Flow Director
- About 10 W power draw
- Retail pack
Product Information
Package Type: Retail
Brand: Supermicro
Manufacturer: Super Micro Computer Inc
Product Line: Supermicro
Model: AOC-ATG-i2T2SM
Product Type: Network adapter
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet
Network Standard: iSCSI, TCP/IP, UDP/IP
Data Transfer Rate: 10 GBps
Capacity: Jumbo frame size: 9.5 KB
Operating System Required: FreeBSD, Linux, Microsoft Windows, VMware ESX
Features: Active State Power Management (ASPM) support, Data Plane Development Kit (DPDK), Energy Efficient Ethernet, Extended Message-Signaled Interrupts (MSI-X), Flow control, GENEVE support, Intel Flow Director, IPv4 checksum offloading, iSCSI boot, Message Signaled Interrupts (MSI), Network Controller Sideband Interface (NC-SI), Network Virtualization using Generic Routing Encapsulation (NVGRE), PXE support, Single Root I/O Virtualization (SR-IOV), TCP/IP checksum offload, Teaming support, UDP/IP checksum offload, Virtual Machine Device Queues (VMDq), VLAN support
Connectivity
Port Quantity: 2
Ports (2nd) Quantity: 2
Ports (2nd) Type: 10 Gigabit SFP+
Interface Provided: 2 x 10Gb Ethernet - RJ-45
Network & Adapter Ports: 10Gb Ethernet
Host Interface: Advanced I/O Module (AIOM)
Expansion Slots: 2 (total) / 2 (free) x SFP+
Power
Power Consumption Operational: 10 watt
Memory and Processor
Processor Brand: Intel
Processor Number: X710-TM4
Processors Installed: 1
Physical Characteristics
Form Factor: Plug-In Card
Dimensions and Weight
Width: 3 inch
Depth: 4.5 inch
Certifications and Listing
Compliant Standards #2: IEEE 802.1AX, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3x
Compliant Standards: ACPI, RoHS 6/6
Compliant Standards: IEEE 802.1AX, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
