Product Information

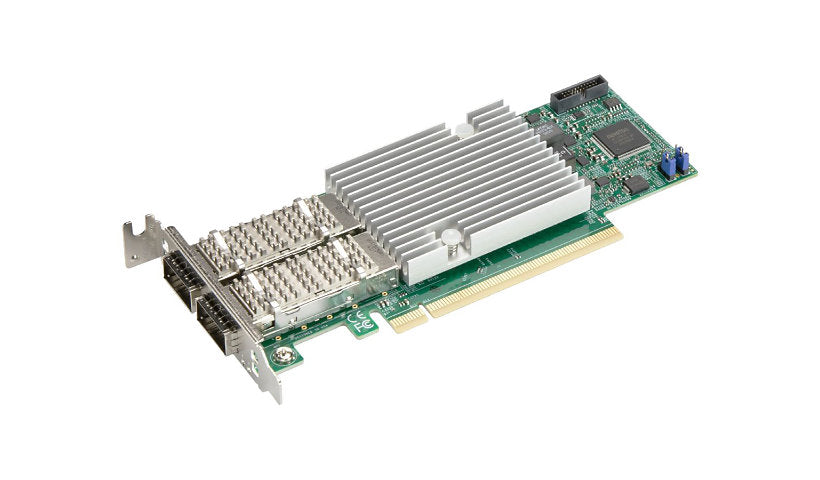

Supermicro's AOC-S100G-B2C is a dual port 100 Gigabit Ethernet card with QSFP28 cages, using a Broadcom BCM57508 (NetXtreme E-Series) controller. It uses a low profile PCIe 4.0 x16 interface that also works in Gen 3 slots, and suits cloud networking, storage, machine learning, analytics and HPC. It supports RoCE, VXLAN, NVGRE, GENEVE, NPAR, TruFlow flow acceleration, link aggregation and 9.6 KB jumbo frames, and draws about 19.5 W. This is the retail packaged version.
Key Features
- 2 x 100GbE QSFP28 ports
- Broadcom BCM57508
- PCIe 4.0 x16
- RoCE and VXLAN offloads
- About 19.5 W power draw
- Low profile, retail pack
Product Information
Package Type: Retail
Brand: Supermicro
Manufacturer: Super Micro Computer Inc
Product Line: Supermicro
Model: AOC-S100G-B2C
Product Type: Network adapter
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 100 Gigabit Ethernet
Network Standard: TCP/IP, UDP/IP
Data Transfer Rate: 100 GBps
Capacity: Jumbo frame size: 9.6 KB
Features: Extended Message-Signaled Interrupts (MSI-X), Flow acceleration, GENEVE support, Jumbo Frames support, Link Aggregation, Low Latency RDMA over Converged Ethernet (RoCE), MultipleQueue, NetQueue, Network Controller Sideband Interface (NC-SI), Network Partitioning (NPAR), Network Virtualization using Generic Routing Encapsulation (NVGRE), TruFlow, Virtual Extensible LAN (VXLAN), VLAN Tagging, VMQueue
Connectivity
PCI Specification Revision: PCIe 4.0
Port Quantity: 2
Interface Provided: 2 x 100Gb Ethernet - QSFP28
Network & Adapter Ports: 100 Gigabit QSFP28
Host Interface: PCI Express 4.0 x16
Power
Power Consumption Operational: 19.51 watt
Memory and Processor
Processor Brand: Broadcom
Processor Number: BCM57508
Processors Installed: 1
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Dimensions and Weight
Height: 2.7 inch
Depth: 6.6 inch
Certifications and Listing
Compliant Standards #2: IEEE 1588, RoHS 6/6
Compliant Standards: IEEE 802.1as, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3ad (LACP), IEEE 802.3az
Compliant Standards: IEEE 1588, RoHS 6/6
