Product Information

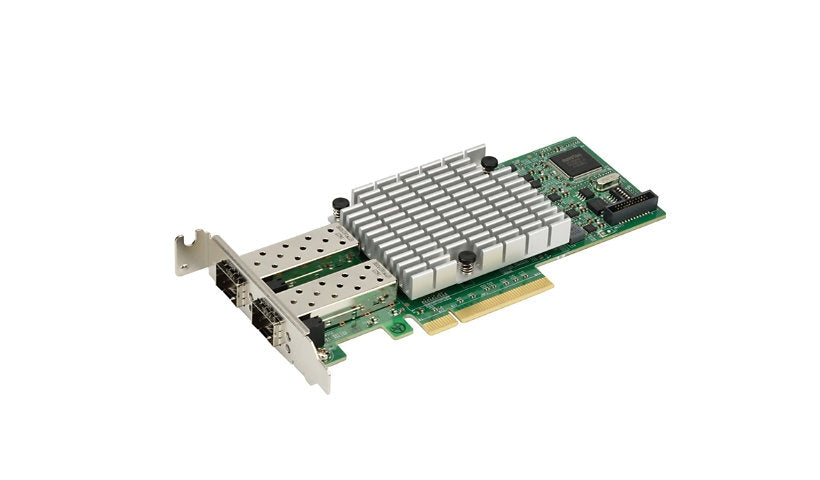

Supermicro's AOC-S25G-i2S is a low profile, short length dual port 25 Gigabit SFP28 network card on a PCIe 3.0 x8 interface, built on the Intel XXV710 controller. It doubles available bandwidth over 10GbE setups and supports SR-IOV, VXLAN and NVGRE, Intel Flow Director, NC-SI, iSCSI and PXE boot and teaming, with 128 virtual ports and 4,096 VLAN tags. It has a thermal sensor for asset management and draws about 7.2 W.
Key Features
- 2 x 25GbE SFP28 ports
- Intel XXV710 controller
- PCIe 3.0 x8
- SR-IOV and VXLAN
- About 7.2 W power draw
- Low profile, short length
Product Information
Brand: Supermicro
Manufacturer: Super Micro Computer Inc
Product Line: Supermicro
Model: AOC-S25G-i2S
Product Type: Network adapter
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 25 Gigabit Ethernet
Network Standard: SCTP, TCP/IP, UDP/IP
Data Transfer Rate: 25 GBps
Capacity: Number of virtual chassis ports: 128, VLAN tags: 4096
Operating System Required: FreeBSD 10.3, FreeBSD 11, Linux 2.6, Linux 4.x, Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Oracle Solaris, Red Hat Enterprise Linux 6.9, Red Hat Enterprise Linux 7.3, SUSE Linux Enterprise 11 SP4, SuSE Linux Enterprise Server 12 SP1, VMware vSphere 2016, VMware vSphere 5.1, VMware vSphere 5.5, VMware vSphere 6.0 (ESXi), VMware vSphere 6.5 (ESXi)
Features: Advanced Packet Filtering, Extended Message-Signaled Interrupts (MSI-X), Flow control, Intel Flow Director, IPv4 support, IPv6 support, iSCSI remote boot, Large Send Offload (LSO), Network Controller Sideband Interface (NC-SI), Network Virtualization using Generic Routing Encapsulation (NVGRE), PXE support, Single Root I/O Virtualization (SR-IOV), Teaming support, UEFI support, Virtual Extensible LAN (VXLAN), Virtual Machine Device Queues (VMDq), VM Load Balancing (VMLB)
Connectivity
PCI Specification Revision: PCIe 3.0
Port Quantity: 2
Network & Adapter Ports: 25 Gigabit SFP28
Host Interface: PCI Express 3.0 x8
Expansion Slots: 2 (total) / 2 (free) x SFP28
Power
Power Consumption Operational: 7.2 watt
Memory and Processor
Processor Brand: Intel
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Dimensions and Weight
Height: 2.7 inch
Depth: 6.1 inch
Weight: 4.5 ounce
Certifications and Listing
Compliant Standards #2: RoHS 6/6
Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3-2005, IEEE 802.3ad (LACP)
Compliant Standards: RoHS 6/6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
