Product Information

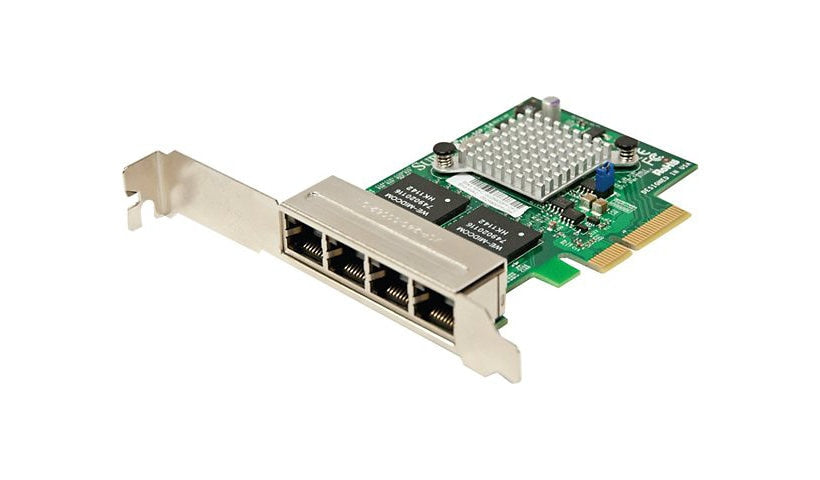

The Supermicro AOC-SGP-i4 is a compact quad port Gigabit Ethernet card on a low profile PCIe 2.1 x4 interface, built on the Intel I350 controller. Its four RJ-45 ports support Intel I/OAT, VMDq, RSS, LSO and checksum offload, QoS, jumbo frames and PXE boot, and it draws about 5 W. Listed systems include the SuperServer 6016T-NTRF4+ and 6017R-WRF, and supported operating systems include Windows, Windows Server, Red Hat, SUSE, FreeBSD, XenServer and VMware ESX.
Key Features
- 4 x 1GbE RJ-45 ports
- Intel I350 controller
- PCIe 2.1 x4
- I/OAT and VMDq
- About 5 W power draw
- Low profile card
Product Information
Brand: Supermicro
Manufacturer: Super Micro Computer Inc
Product Line: Supermicro
Model: AOC-SGP-i4
Product Type: Network adapter
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: iSCSI, TCP/IP, UDP/IP
Cable Type: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Data Transfer Rate: 1 GBps
Operating System Required: Citrix XenServer, FreeBSD 8.0, Microsoft Windows 7 SP1, Microsoft Windows Server 2003 SP2, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008 SP2, Microsoft Windows Vista SP2, Microsoft Windows XP SP3, Red Hat Enterprise Linux 5.5, Red Hat Linux 6.0, SuSE Linux Enterprise Server 10 SP3, SuSE Linux Enterprise Server 11 SP1, VMware ESX 4.0, VMware ESX 4.1, VMware ESX 5.0
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Automatic topology detection, Flow control, Intel I/O Acceleration Technology (I/OAT), IPv4 and IPv6 Large Send Offload and Checksum Offload (LSO/TCO), IPv6 support, Jumbo Frames support, PXE support, Quality of Service (QoS), Receive Side Scaling (RSS), Scalable clustering, Virtual Machine Device Queues (VMDq)
Connectivity
Port Quantity: 4
Interface Provided: 4 x 1000Base-T - RJ-45
Network & Adapter Ports: 10/100/1000
Compatible Slots Required: 1 x PCI Express 2.1 x4
Host Interface: PCI Express 2.1 x4
Power
Power Consumption Operational: 5 watt
Memory and Processor
Processor Brand: Intel
Processor Number: I350
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Dimensions and Weight
Height: 2.5 inch
Width: 2.5 inch
Depth: 3.9 inch
Certifications and Listing
Compliant Standards #2: IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Compliant Standards: RoHS 6/6
Compliant Standards: IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - labor - 3 years, Limited warranty - parts - 1 year
